Massey-Harris Challenger


Massey-Harris Challenger tractor photo
1936 - 1939
Row-Crop tractor
Production
Manufacturer:Massey-Harris
Type:Row-Crop tractor
Factory:Racine, Wisconsin, USA
Total built:14,000
The Massey-Harris Challenger was the row-crop version of the Pacemaker. These tractors replaced the Wallis 12/20 in Massey's line. The Twin Power feature increased engine rpms to provide additional horsepower for belt work.
Massey-Harris Challenger Power
Drawbar (claimed):20 hp
14.9 kW
Belt (claimed):32 hp
23.9 kW
Drawbar (tested):29.8 hp
22.2 kW
Belt (tested):34.9 hp
26.0 kW
power test details ...
Massey-Harris Challenger Engine
Massey-Harris 4.1L 4-cyl gasoline
Fuel tank:18 gal
68.1 L
Aux. fuel:1.6 gal
6.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
Transmission:4-speed gear
Transmission details ...
Dimensions & Tires
Wheelbase:78 inches
198 cm
Weight:3900 lbs
1769 kg
Front tire:24x4.50
Rear tire:52x8.00
Full dimensions and tires ...

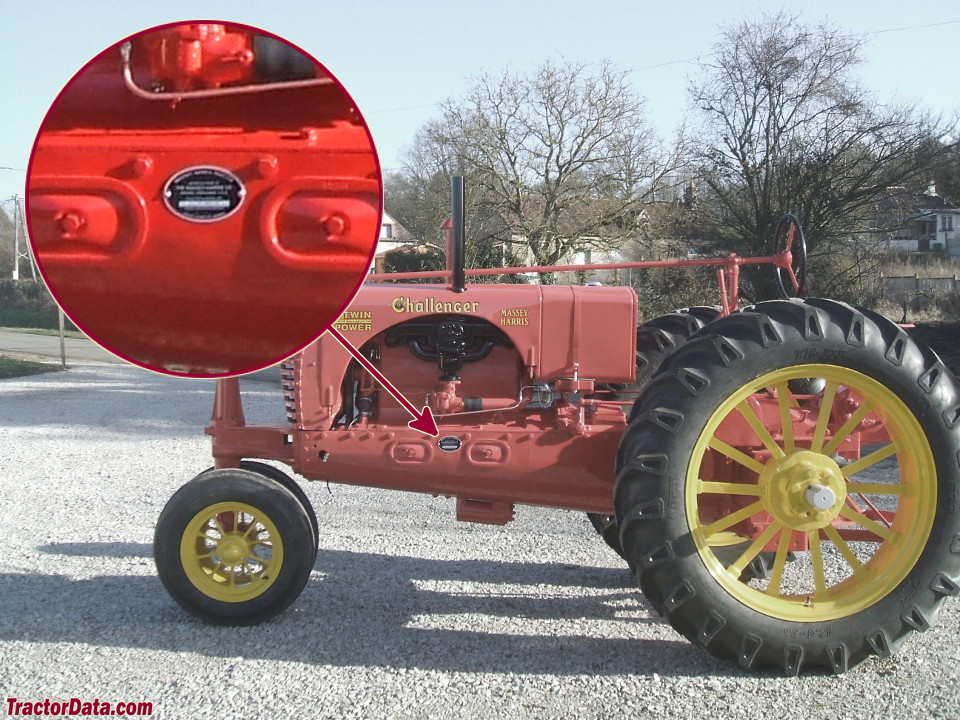

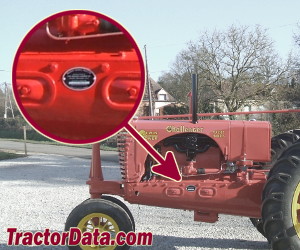

Challenger Serial Numbers
Location:On side of main tractor frame.
photo of Challenger serial number
