Production | |
Manufacturer: | Massey-Harris |
Type: | Standard-tread tractor |
Factory: | Racine, Wisconsin, USA |
Total built: | 15,000 |

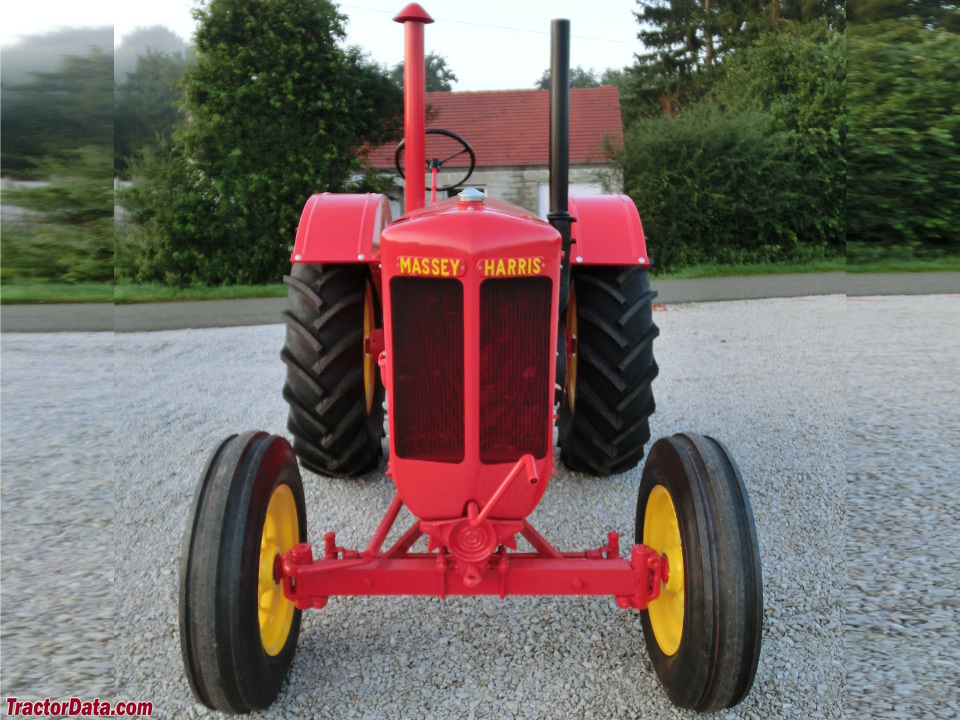

The Massey-Harris 25 was restyled and given a new red paint scheme in 1939. The 25 was Massey's replacement for the Wallis 20/30, which it had previously sold. |
Massey-Harris 25 Power | |
Drawbar (claimed): | 26 hp 19.4 kW |
Belt (claimed): | 41 hp 30.6 kW |
Plows: | 3-4*14-inch |
Drawbar (tested): | 33.13 hp 24.7 kW |
Belt (tested): | 44.2 hp 33.0 kW |
Massey-Harris 25 Engine | |
Massey-Harris 5.7L 4-cyl gasoline | |
Fuel tank: | 24 gal 90.8 L |
Aux. fuel: | 1.6 gal 6.1 L |
Engine details ... |
Mechanical | |
Chassis: | 4x2 2WD |
Steering: | manual |
Cab: | Open operator station. |
Transmission: | 3-speed gear |
Transmission details ... |
Photos | |
Massey-Harris 25 photos... |
Dimensions & Tires | |
Weight: | 5000 lbs 2268 kg |
Front tire: | 30x6 |
Rear tire: | 48x12 |
Full dimensions and tires ... |
25 Serial Numbers | |

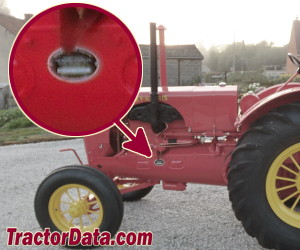

Location: | Serial number plate on the left side of the tractor frame. |
1932: | 69001 |
1933: | 69--- |
1934: | 69--- |
1935: | 69--- |
1936: | 69970 |
1937: | 71045 |
1938: | 73112 |
Belt Pulley | |
Diameter: | 19 inches 48 cm |
Width: | 7.125 inches 18 cm |
RPM: | 525 |
Speed: | 2612 ft/min 796.14 meters/min |
