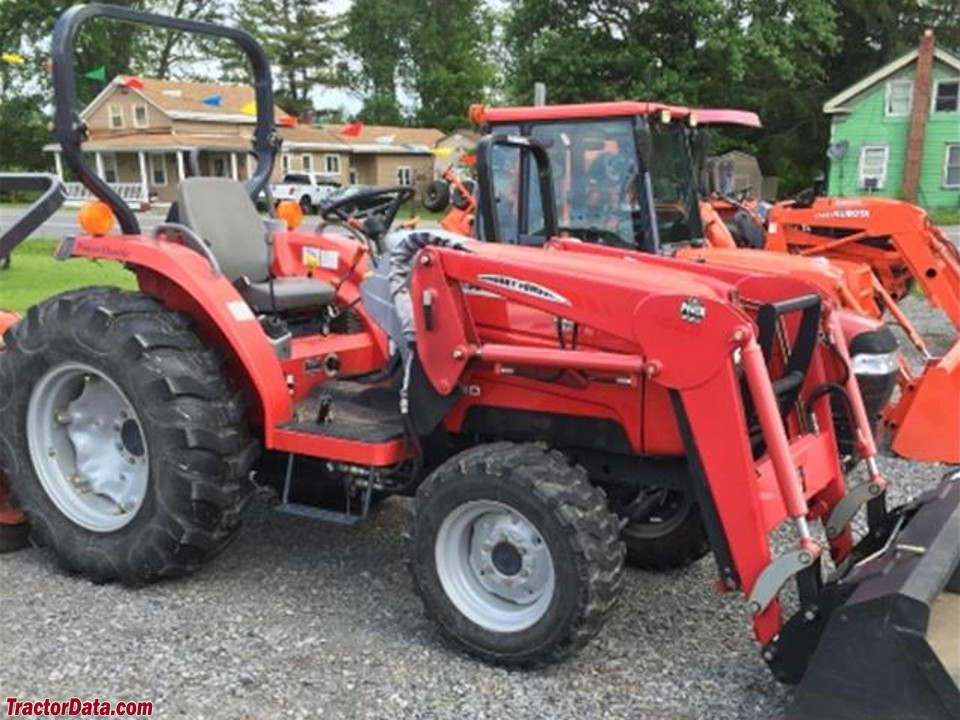

Massey Ferguson 1540
| | 2005 - 2014 |
|
| 1500 Series | | Compact Utility tractor | | Iseki built |
|
| Production |
| Distributor: | Massey Ferguson
|
| Manufacturer: | Iseki
|
| Type: | Compact Utility tractor
|
| Factory: | Matsuyama, Japan
|
| Original price: | $17,939 (2008 SyncShuttle )
|
| Original price: | $20,651 (2009 hydrostatic )
|
| Massey Ferguson 1540 Power |
| Engine (gross): | 40.1 hp
29.9 kW
|
| Hydro PTO (claimed): | 29.5 hp
22.0 kW
|
| Shuttle PTO (claimed): | 31 hp
23.1 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post folding ROPS
|
| Transmissions: | 8-speed
|
| | hydrostatic
|
| | 12-speed
|
 Transmission details ... |
| Capacity |
| Fuel: | 10.6 gal
40.1 L
|
| Front axle: | 7.9 qts
7.5 L
|
| Hydraulics |
| Type: | open center
|
| Valves: | 2 optional
|
| Pump flow: | 9.1 gpm
34.4 lpm
|
| Total flow: | 14 gpm
53.0 lpm
|
| | 15.1 gpm
57.2 lpm *With PowerShuttle
|
| Steering flow: | 4.9 gpm
18.5 lpm
|
| | 6 gpm
22.7 lpm *With PowerShuttle
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | position control
|
| Rear lift (at ends): | 2800 lbs
1270 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540 (1.375)
|
| Mid PTO: | independent*Optional
|
| Mid RPM: | 2000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
