Tractors > Challenger > MT545B

Challenger MT545B - transmission

Challenger MT545B tractor photo
2004 - 2011   MT500B Series
Model years
Row-Crop tractor
Previous model:Challenger MT545
Series next:Challenger MT555B
Series back:Challenger MT535B
more Challenger MT545B specifications...






Transmission:

Transmission:AutoPower IV
Type:partial power shift
Gears:32 forward and reverse
Clutch:hydraulic wet disc
Four synchronized gears (1-4) in two synchronized ranges (low/high) with a four-speed (A-D) power shift on the left-hand power shuttle lever.
Speeds:With 20.8R38 rear tires.

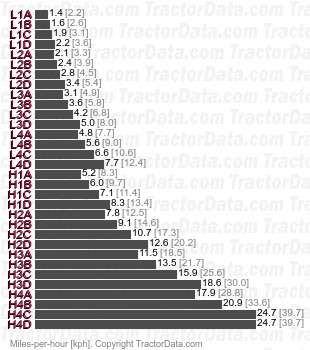

MT545B AutoPower IV partial power shift speeds


Transmission:

Transmission:AutoPower VI
Type:partial power shift
Gears:24 forward and reverse
Four gears with six power shift ranges. The AutoPower VI became acailable in 2005.


Transmission:

Transmission:TechStar CVT
Type:continuously variable transmission
Gears:infinite (2-range) forward and reverse
Oil capacity:59.2 qts [56.0 L]
Speeds:50 KPH speeds available with front-axle suspension.

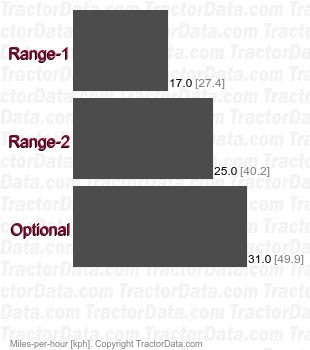

MT545B TechStar CVT continuously variable transmission speeds
