Tractors > International Harvester > 15-30 Titan

International Harvester 15-30 Titan

International Harvester 15-30 Titan tractor photo
1917 - 1921
Standard-tread tractor






Production:

Manufacturer:International Harvester
Factory:Milwaukee, Wisconsin, USA
 Chicago, Illinois, USA
Total built:6,024


International Harvester 15-30 Engine:

   International Harvester 11.4L 4-cyl kerosene
full engine details ...


Capacity:

Fuel:29 gal [109.8 L]


Dimensions & Tires:

Weight:8990 lbs [4077 kg]
Front tire:40x7
Rear tire:66x14
full dimensions and tires ...


15-30 Serial Numbers:

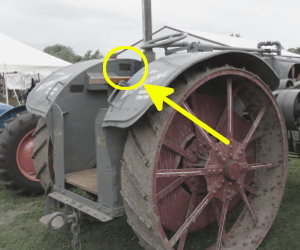

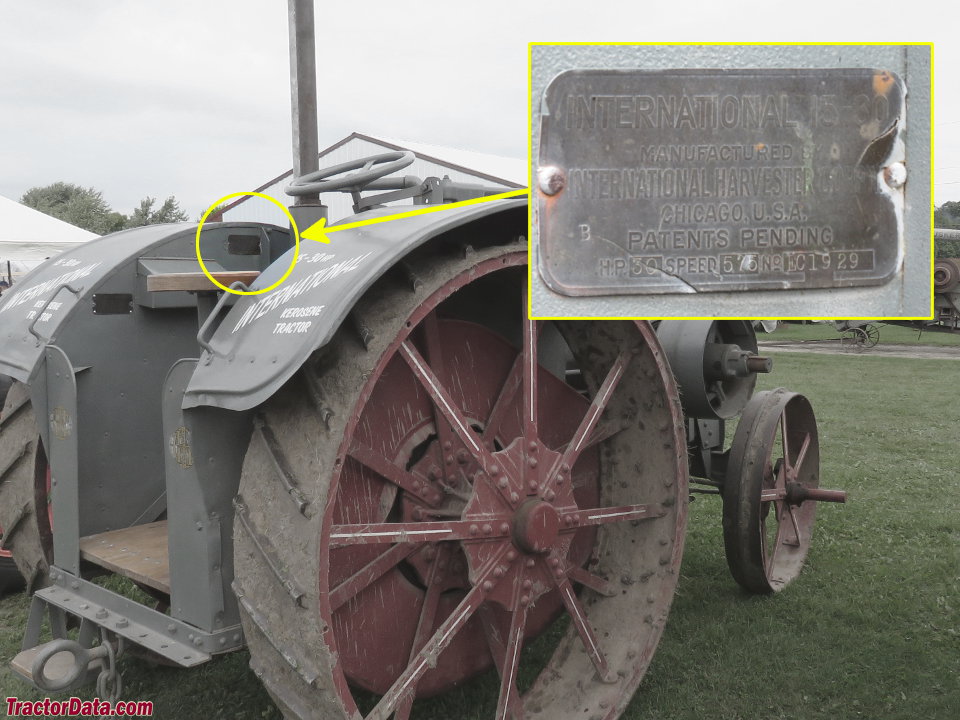

Location:Serial number plate on the left fender of the Titan 15-30.
photo of 15-30 serial number

1917: TV101
1918: TV477
1918: EC501
1919: EC1366
1920: EC3018
1921: EC4086
Final: EC4906

how to read serial numbers...



International Harvester 15-30 Power:

Drawbar (claimed):15 hp [11.2 kW]
Belt (claimed):30 hp [22.4 kW]
Drawbar (tested):25.9 hp [19.3 kW]
Belt (tested):36.9 hp [27.5 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Cab:Open operator station. Four-post canopy available.
