Tractors > McCormick-Deering > TD-35

McCormick-Deering TD-35

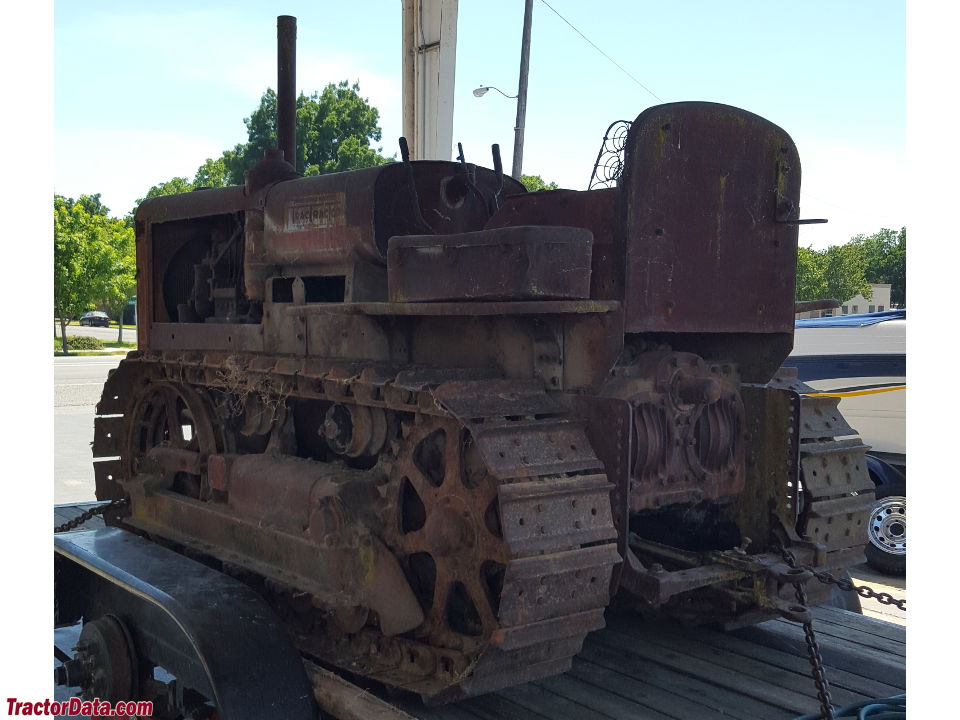

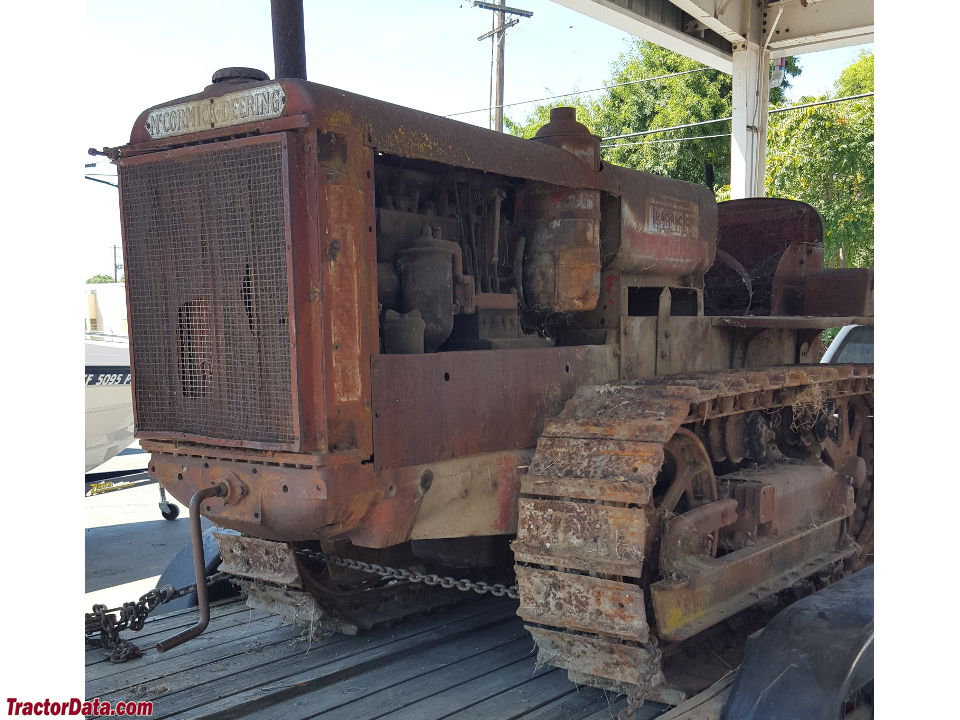

McCormick-Deering TD-35 tractor photo
1937 - 1939
Agricultural Crawler tractor






Production:

Manufacturer:International Harvester
Factory:Melrose Park, Illinois, USA


McCormick-Deering TD-35 Engine:

   International Harvester 6.8L 4-cyl diesel
full engine details ...


Capacity:

Fuel:40 gal [151.4 L]
Aux. fuel:1.25 gal [4.7 L]


Dimensions & Tires:

Weight:10550 to 11245 pounds
Front tire:tracks
Rear tire:tracks
full dimensions and tires ...


TD-35 Serial Numbers:

Location:Seat, right side

- Serial numbers unknown -



McCormick-Deering TD-35 Power:

Drawbar (claimed):27 hp [20.1 kW]
Belt (claimed):37 hp [27.6 kW]
Drawbar (tested):37.09 hp [27.7 kW]
Belt (tested):42.2 hp [31.5 kW]
power test details ...


Mechanical:

Chassis:crawler
Cab:Open operator station.


Belt Pulley:

Diameter:16.75 inches [42 cm]
Width:9 inches [22 cm]
RPM:591
