John Deere 3203 - engine

John Deere 3203 tractor photo
2006 - 2008
Compact Utility tractor
more John Deere 3203 specifications...






Engine Detail:

 Yanmar 3TNV84
 diesel
 3-cylinder
 liquid-cooled
 91.5 ci [1.5 L]
Bore/Stroke:3.3x3.54 inches [84 x 90 mm]
Emissions:Tier II
Rated Power (EC 97/98):32 hp [23.9 kW]
Air cleaner:dry with safety element
Compression:19:1
Rated RPM:2800
Idle RPM:950-2975
Operating RPM:950-2975
Torque:73.8 lb-ft [100.1 Nm]
Torque RPM:1680
Starter volts:12
Starter power:1.6 hp [1.2 kW]

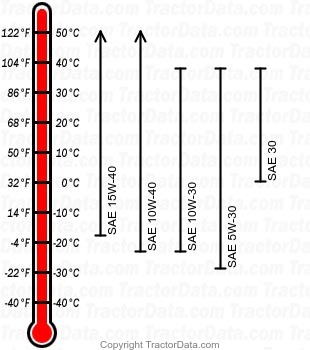

Oil capacity:4.5 qts [4.3 L]
Oil change:200 h
Coolant capacity:5.6 qts [5.3 L]
