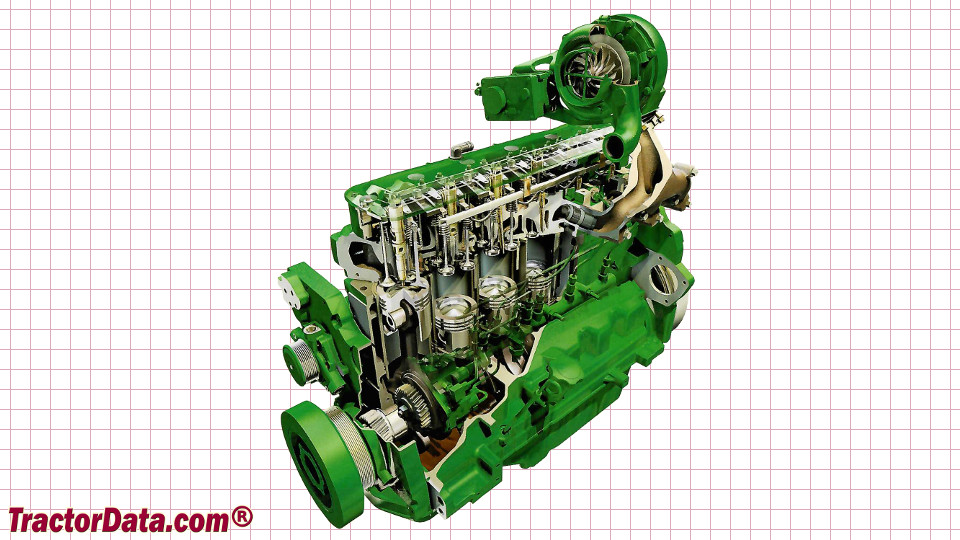

John Deere 7930 - engine

John Deere 7930 tractor photo
2007 - 2011   7030 Series
Row-Crop tractor
Previous model:John Deere 7920
Next model:John Deere 7260R
Series back:John Deere 7830
more John Deere 7930 specifications...






Engine Detail:

 John Deere
 intercooled turbocharged diesel
 6-cylinder
 liquid-cooled
 414 ci [6.8 L]
Bore/Stroke:4.19x5.00 inches [106 x 127 mm]
Power:220 hp [164.1 kW]
Fuel system:high-pressure common rail
Cooling system:viscous fan
Air cleaner:dual paper elements
Compression:17:1
Rated RPM:2100
Torque:645 lb-ft [874.6 Nm]
Torque RPM:1602
Firing order:1-5-3-6-2-4
Starter volts:12
Oil capacity:27.5 qts [26.0 L]
