CaseIH MX305 Magnum - transmission

CaseIH MX305 Magnum tractor photo
2006 - 2007   Magnum Series
Row-Crop tractor
Previous model:CaseIH MX285
Next model:CaseIH Magnum 305
Series back:CaseIH MX275
more CaseIH MX305 Magnum specifications...






Transmission:

Transmission:Powershift
Gears:18 forward and 4 reverse


Transmission:

Transmission:Powershift - overdrive
Gears:19 forward and 4 reverse
Speeds:

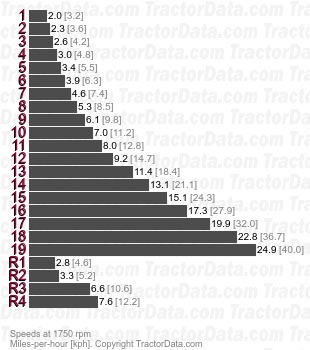

MX305 Magnum Powershift - overdrive  speeds


Transmission:

Transmission:Creeper
Gears:23 forward and 6 reverse
