Massey Ferguson 4325


Massey Ferguson 4325 tractor photo
2002 - 2003
4300 Series
Utility tractor
Series map:
4320
4325
4335
64.0hp
67.0hp
78.0hp
Production
ManufacturerMassey Ferguson (a part of AGCO)
Utility tractor
Built in Coventry, England
Massey Ferguson 4325 Engine
Perkins 4.0L 4-cyl diesel
Cab Fuel tank26 gal
98.4 L
ROPS Fuel tank29.1 gal
110.1 L
Engine details ...
Massey Ferguson 4325 Transmissions
8-speed gear
12-speed gear
12-speed mechanical shuttle
12-speed power shuttle
Transmission details ...
Massey Ferguson 4325 Power
Engine (gross)67 hp
50.0 kW
Engine (net)64 hp
47.7 kW
PTO (claimed)55 hp
41.0 kW
Drawbar (tested)42.5 hp
31.7 kW
PTO (tested)55.4 hp
41.3 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Photos
No photos of the Massey Ferguson 4325 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure3046 psi
210.0 bar
Valves2 to 4
SCV flow10 gpm
37.9 lpm
 14.4 gpm*Combined flow with 540 PTO
54.5 lpm
 17.2 gpm*Combined flow with 540/1000 PTO
65.1 lpm
 17.4 gpm*Optional dedicated flow with power shuttle
65.9 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at 24"/610mm)3665 lbs
1662 kg
 4495 lbsOptOptional
2038 kg
Rear Armstelescopic lower links
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540 (1.375)
 540/1000 (1.375)
Engine RPM540@1789
 540@1902 *Dual-speed
 1000@2000
Dimensions & Tires
Wheelbase93 inches
236 cm
Weight6182 to 7630 pounds
Front tire10.00-16
2WD Rear tire480/70R34
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
ROPS Charging amps45
Cab Charging amps80
Cab Charging amps120 OptOptional
Batteries2
Battery CCA590
Battery volts12
References

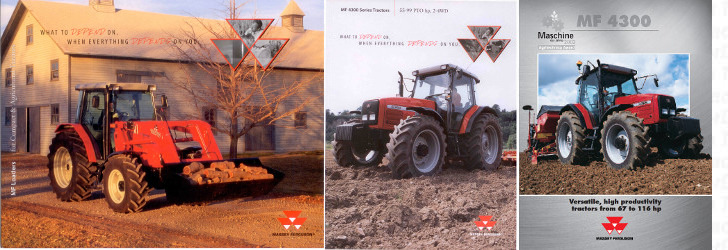

4325 references literature
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
4300 Series Tractors published in 2001, by Massey Ferguson
4300 Series Tractors published in 2002, by Massey Ferguson
