International Harvester TD-6 Engine


International Harvester TD-6 tractor photo
1940 - 1969
Model year
Agricultural Crawler tractor
Engine Detail
International Harvester
diesel
4-cylinder
liquid-cooled vertical I-head
Gasoline-start diesel engine.
Displacement247.7 ci
4.1 L
Bore/Stroke3.875x5.25 inches
98 x 133 mm
Rated RPM1450
Firing order1-3-4-2
Starter volts12
Oil capacity9 qts
8.5 L
Coolant capacity42 qts
39.7 L

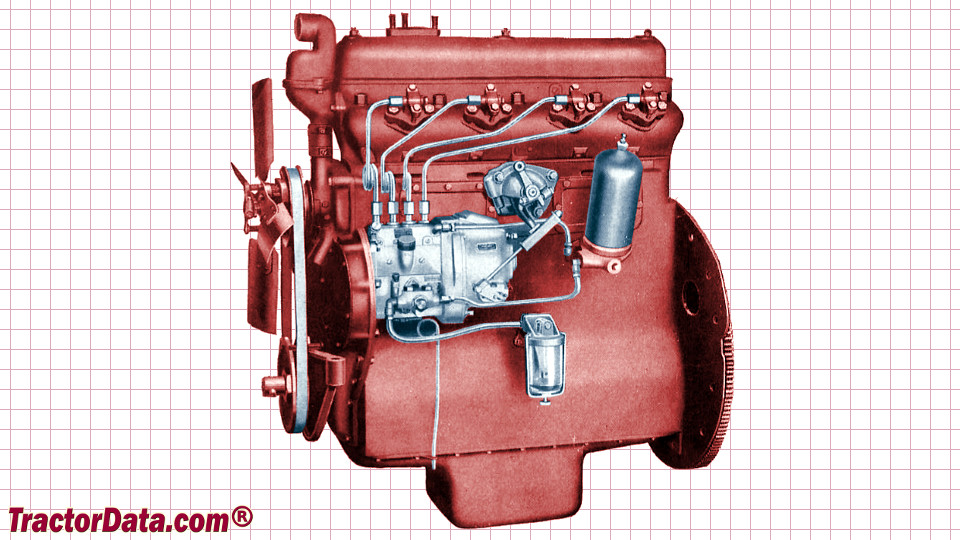

International Harvester TD-6 Engine
International Harvester TD-6 engine image
