Tractors > McCormick-Deering > W-30

McCormick-Deering W-30

McCormick-Deering W-30 tractor photo
1931 - 1939
Standard-tread tractor






Production:

Manufacturer:McCormick-Deering (a part of International Harvester)
Factory:Chicago, Illinois, USA
Total built:32,541


McCormick-Deering W-30 Engine:

   International Harvester 4.6L 4-cyl distillate
full engine details ...


Capacity:

Fuel:24 gal [90.8 L]
Aux. fuel:1 gal [3.8 L]


Dimensions & Tires:

Weight:4,850 lbs [2199 kg]
Front tire:30x4.50
Rear tire:36x12
full dimensions and tires ...


W-30 Serial Numbers:

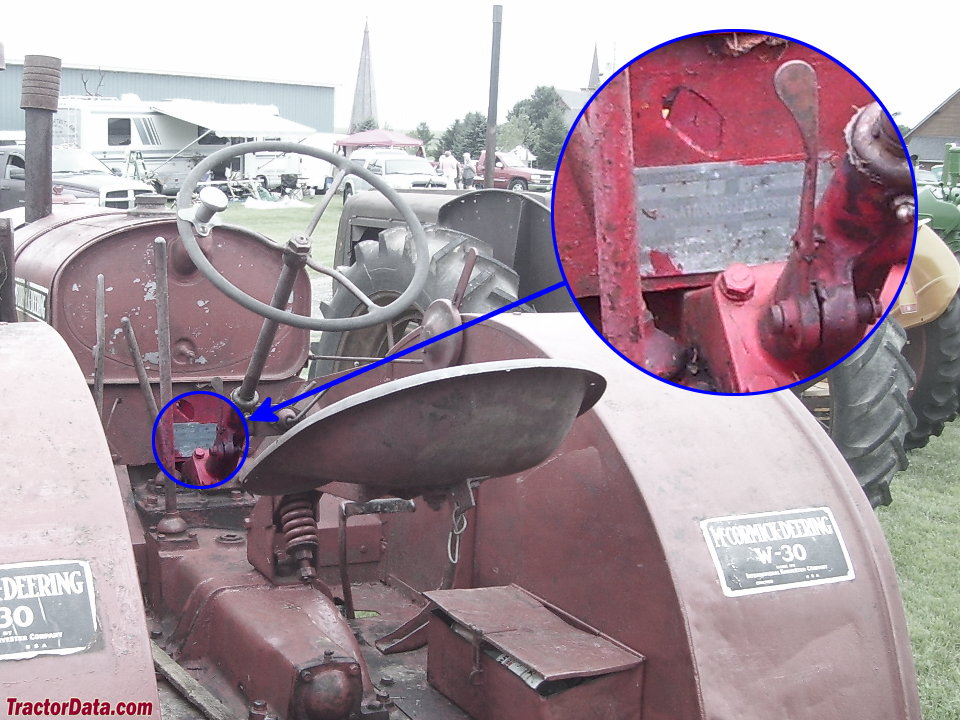

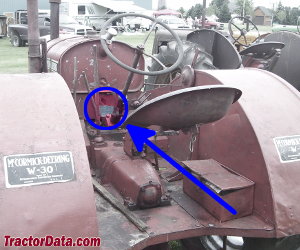

Location:Serial number plate ahead of steering column on the W-30, below the fuel tank.
photo of W-30 serial number


how to read serial numbers...



McCormick-Deering W-30 Power:

Drawbar (claimed):18 hp [13.4 kW]
Belt (claimed):25 hp [18.6 kW]
Plows:3
Drawbar (tested):24.29 hp [18.1 kW]
Belt (tested):33.26 hp [24.8 kW]
power test details ...


Mechanical:

Chassis:4x2 2WD
Steering:manual
Cab:Open operator station.
