    Farmall F-14

    Farmall F-14 tractor photo
    1938 - 1939
    Row-Crop tractor
    Previous model:Farmall F-12






    Production:

    Manufacturer:International Harvester
    Factory:Chicago, Illinois, USA
     Rock Island, Illinois, USA
    Total built:27,401


    Variants:

    W-14:McCormick standard-tread version


    Farmall F-14 Engine:

       International Harvester 1.9L 4-cyl gasoline
    full engine details ...


    Capacity:

    Fuel:13 gal [49.2 L]
    Aux. fuel:1 gal [3.8 L]


    Dimensions & Tires:

    Weight:2,700 lbs [1224 kg]
    Front tire:22.50x4
    Rear tire:54x6
    full dimensions and tires ...


    F-14 Serial Numbers:

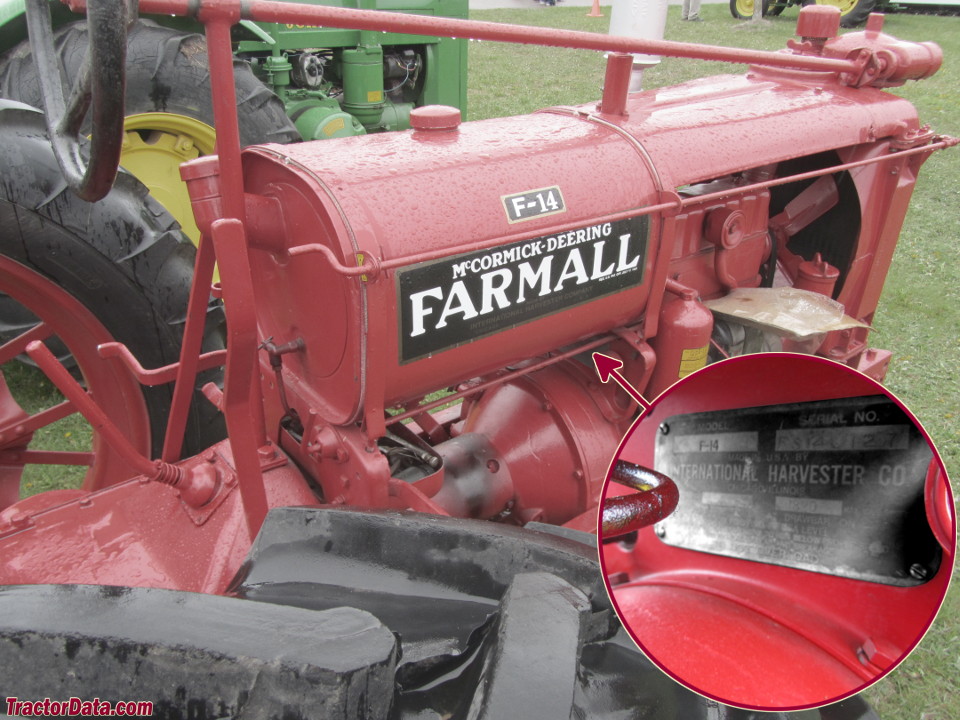

    Location:Below front end of fuel tank, above clutch housing.
    photo of F-14 serial number

    1938: FS124000
    1939: FS139607
    Final: FS155902

    how to read serial numbers...



    Farmall F-14 Power:

    Drawbar (claimed):12 hp [8.9 kW]
    Belt (claimed):15 hp [11.2 kW]
    Plows:1
    Drawbar (tested):14.84 hp [11.1 kW]
    Belt (tested):17.44 hp [13.0 kW]
    power test details ...


    Mechanical:

    Chassis:4x2 2WD
    Cab:Open operator station.
