Mitsubishi MT372
|
|
| Production | |
| Manufacturer | Mitsubishi |
| Sub-Compact Utility tractor | |
| Variants | |
| MT372 | 2WD |
| MY372D | 4WD |
| Mitsubishi MT372 Engine | |
| Mitsubishi 0.7L 2-cyl diesel | |
| Fuel tank | 4 gal 15.1 L |
 Engine details ... | |
| Mitsubishi MT372 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Mitsubishi MT372 Power | |
| Engine | 15 hp 11.2 kW |
| PTO (claimed) | 12.2 hp 9.1 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | spur gear |
| Differential lock | mechanical rear |
| Manual steering | |
| Open operator station. | |
| Photos | |
 | |

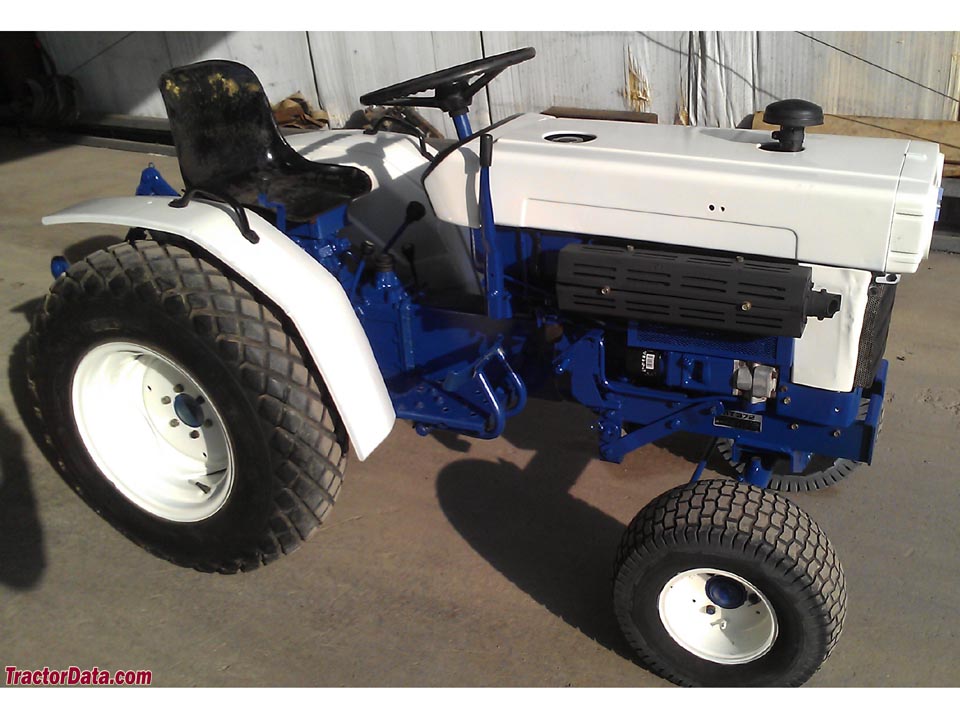

 Mitsubishi MT372 photos... | |
| Hydraulics | |
| Type | open center |
| Pressure | 1920 psi 132.4 bar |
| Pump flow | 3.6 gpm 13.6 lpm |
| Tractor hitch | |
| Rear Type | I |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2580 |
| 1000@1980 | |
| Dimensions & Tires | |
| 2WD Wheelbase | 50.4 inches 128 cm |
| 4WD Wheelbase | 51.4 inches 130 cm |
| Weight | 1069 to 1177 pounds |
| Front tire | 4.00-8 |
| 2WD Rear tire | 8-16 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 26.5 |
| Battery volts | 12 |
| Battery AH | 45 |
| References | |
 | |
| MT372 Repair Manual |
