Tractors > Mitsubishi > MT180

Mitsubishi MT180

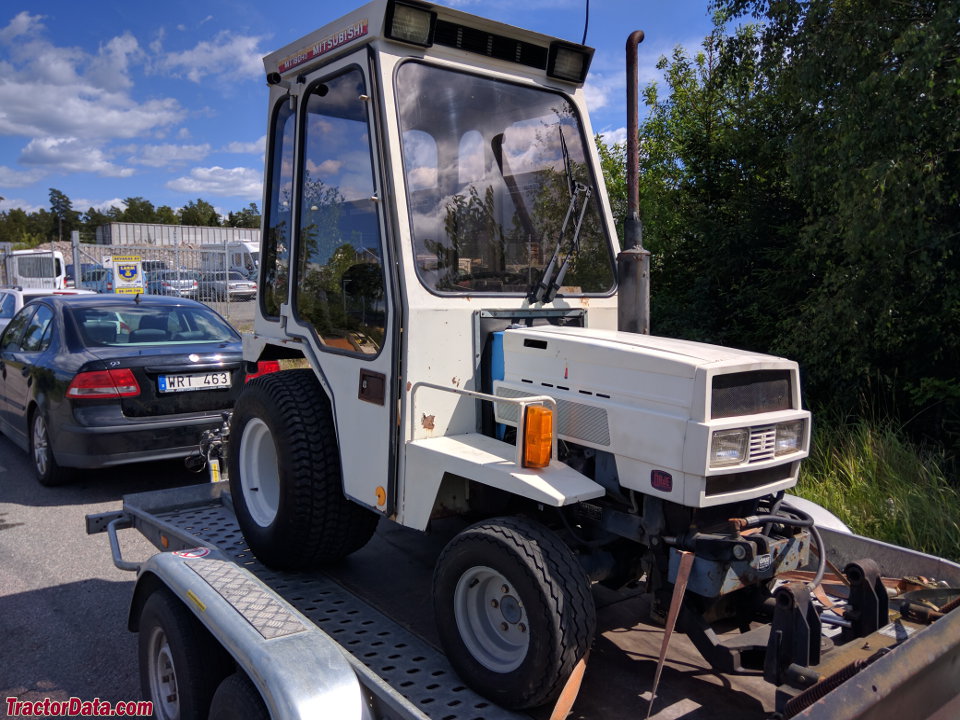

Mitsubishi MT180 tractor photo
1984 - 1991
Compact Utility tractor
Series next:Mitsubishi MT210
Series back:Mitsubishi MT160






Production:

Manufacturer:Mitsubishi


Variants:

MT180 Gear:2WD
MT180D Gear:4WD
MT180HM:2WD Hydro
MT180HMD:4WD Hydro


Mitsubishi MT180 Engine:

   Mitsubishi 0.9L 3-cyl diesel
full engine details ...


Capacity:

Fuel:4.8 gal [18.2 L]
Hydraulic system:3.2 gal [12.1 L]


3-Point Hitch:

Rear Type:I
Control:position control


Power Take-off (PTO):

Rear RPM:540/1000 (1.375)
Engine RPM:540@2340
1000@1793


Dimensions & Tires:

Wheelbase:56 inches [142 cm]
Weight:1268 to 1378 pounds
Front tire:4.50-10
2WD Rear tire:8-18
full dimensions and tires ...


MT180 Serial Numbers:


how to read serial numbers...



Mitsubishi MT180 Power:

Engine:18.5 hp [13.8 kW]
PTO (claimed):15.5 hp [11.6 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
Steering:manual
Brakes:drum
Cab:Open operator station.


Hydraulics:

Type:open center
Capacity:3.2 gal [12.1 L]
Pressure:1920 psi [132.4 bar]
Pump flow:3.4 gpm [12.9 lpm]


Electrical:

Ground:negative
Charging amps:35


Battery:

Number:1
Volts:12
Amp-hours:45
