Tractors > Satoh > Beaver S370

Satoh Beaver S370

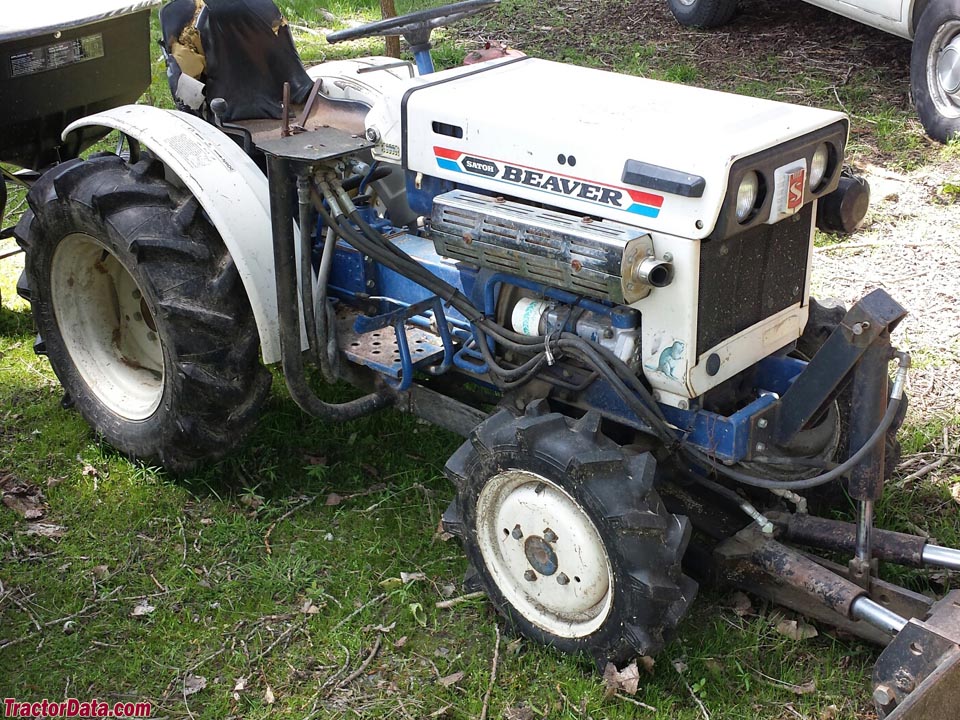

Satoh Beaver S370 tractor photo
1977 - 1984
Compact Utility tractor






Production:

Manufacturer:Satoh


Variants:

S-370:2WD
S-370D:4WD


Satoh S370 Engine:

   Mitsubishi 0.7L 2-cyl diesel
full engine details ...


Capacity:

Fuel:3.3 gal [12.5 L]


3-Point Hitch:

Rear Type:0
Rear lift (at ends):1,274 lbs [577 kg]


Power Take-off (PTO):

Rear PTO:transmission
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:48.23 inches [122 cm] (2WD)
 49.80 inches [126 cm] (4WD)
Weight:1035.3 to 1180.6 pounds
Front tire:4.00-9
Rear tire:8-16 (2WD)
full dimensions and tires ...


S370 Serial Numbers:


- Serial numbers unknown -



Satoh S370 Power:

Engine (gross):15 hp [11.2 kW]
Engine (net):13 hp [9.7 kW]
PTO (claimed):12.2 hp [9.1 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (S-370D)
Differential lock:foot pedal
Steering:manual
Brakes:mechanical internal expanding shoe
Cab:Open operator station.


Hydraulics:

Pressure:1920 psi [132.4 bar]
Total flow:3.84 gpm [14.5 lpm]


Electrical:

Ground:negative
Charging system:alternator
Charging amps:26.5


Battery:

Volts:12
