Tractors > Yanmar > YM169

Yanmar YM169

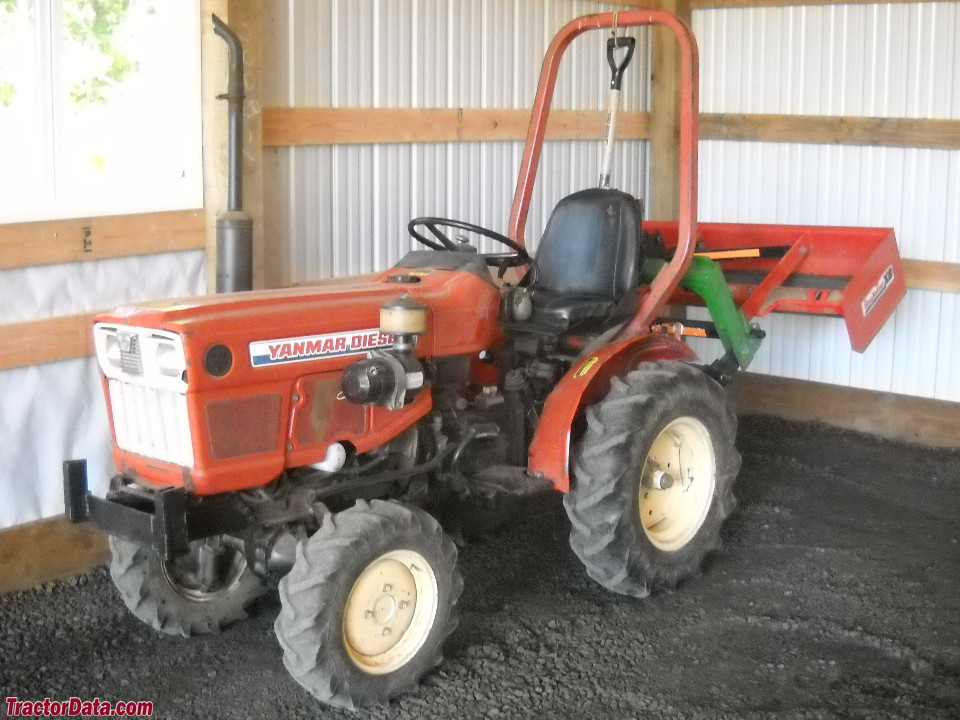

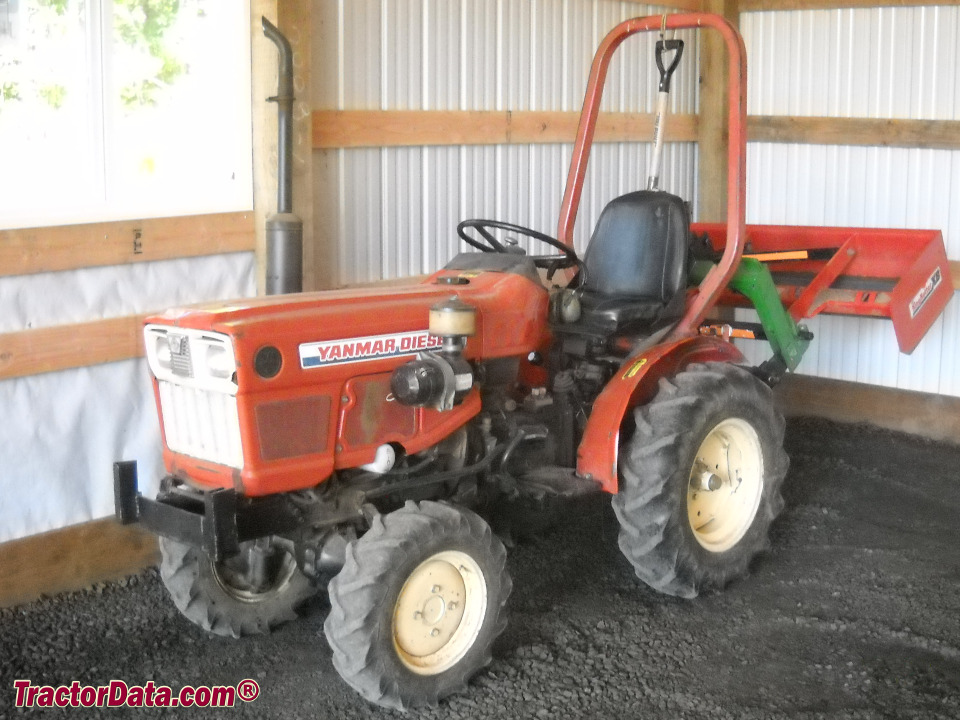

Yanmar YM169 tractor photo
1986 - 1989
Sub-Compact Utility tractor






Production:

Manufacturer:Yanmar


Variants:

YM169:2WD
YM169D:4WD


Yanmar YM169 Engine:

   Yanmar 0.9L 3-cyl diesel
full engine details ...


Capacity:

Fuel:4.2 gal [15.9 L]


3-Point Hitch:

Rear Type:I
Rear lift:1,102 lbs [499 kg]


Power Take-off (PTO):

Rear RPM:540/770
Engine RPM:540@2255
770@2255


Dimensions & Tires:

Wheelbase:49.4 inches [125 cm]
Weight:1,300 lbs [589 kg]
Front tire:4.50-10
Rear tire:8-16 (2WD)
full dimensions and tires ...


YM169 Serial Numbers:


- Serial numbers unknown -



Yanmar YM169 Power:

Engine:16 hp [11.9 kW]
PTO (claimed):16 hp [11.9 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD (YM169D)
Brakes:mechanical drum
Cab:Open operator station.


Hydraulics:

Type:gear pump
Pressure:1564 psi [107.8 bar]
Total flow:3.43 gpm [13.0 lpm]


Electrical:

Ground:negative
Charging amps:15
Charging volts:12


Battery:

Number:1
Volts:12
