    Deutz-Allis 5220

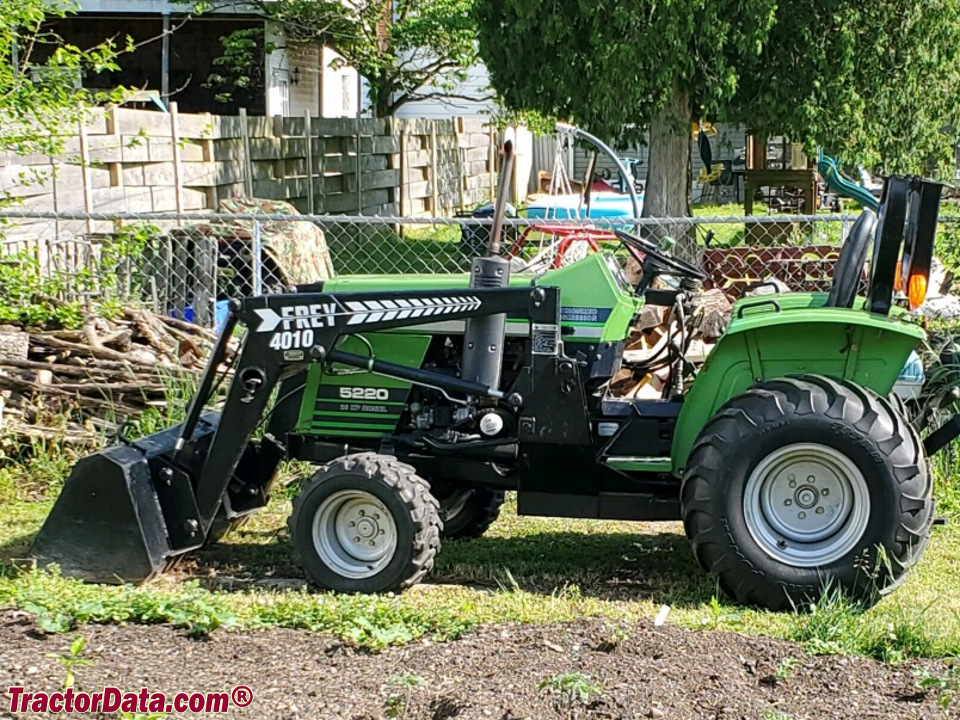

    Deutz-Allis 5220 tractor photo
    1986 - 1989   5200 Compact Series
    Compact Utility tractor
    Previous model:Allis Chalmers 5020
    Larger:Deutz-Allis 5230
    Smaller:Deutz-Allis 5215





    The Deutz-Allis 5220 is similar to the Hinomoto E2302/E2304, and the Massey 1033.


    Production:

    Distributor:Deutz-Allis
    Manufacturer:Hinomoto
    Original price (USD):$10,000 (1989)


    Deutz-Allis 5220 Engine:

       Toyosha 1.4L 3-cyl diesel
    full engine details ...


    Capacity:

    Fuel:7.1 gal [26.9 L]
    Hydraulic system:6.6 gal [25.0 L]
    Steering:1 qts [0.9 L]


    3-Point Hitch:

    Rear Type:I
    Rear lift (at ends):1,958 lbs [888 kg]


    Power Take-off (PTO):

    Rear PTO:live
    Rear RPMs:540


    Dimensions & Tires:

    Wheelbase:63 inches [160 cm] (2WD)
     62.8 inches [159 cm] (4WD)
    Weight:2222 to 2398 pounds
    Front tire:5.00-15
    Rear tire:11.2-14 (2WD)
    full dimensions and tires ...


    5220 Serial Numbers:


    - Serial numbers unknown -



    Deutz-Allis 5220 Power:

    Engine (gross):26 hp [19.4 kW]
    PTO (claimed):21 hp [15.7 kW]


    Mechanical:

    Chassis:4x2 2WD
     4x4 MFWD 4WD (optional)
    Steering:manual
     power optional
    Brakes:differential wet disc
    Cab:Two-post ROPS with optional canopy. Optional cab.


    Hydraulics:

    Type:open center
    Capacity:6.6 gal [25.0 L]
    Valves:0 to 2
    Total flow:4.6 gpm [17.4 lpm]
    Steering cap.:1 qts [0.9 L]


    Electrical:

    Ground:negative


    Battery:

    Number:1
    Volts:12
