| | 1929 - 1943 |
| Agricultural Crawler tractor |
|
| Transmissions overview |
| 3-speed gear |
| 4-speed gear |
| Transmission |
| Type: | gear
|
| Gears: | 3 forward and 1 reverse
|
| The three-speed transmission was used on early models. |
| Speeds |
|
| Transmission |
| Type: | gear
|
| Gears: | 4 forward and 1 reverse
|
| Oil capacity: | 22 qts
20.8 L
|
| The four-speed transmission was introduced in 1935 at tractor serial number 4451. |

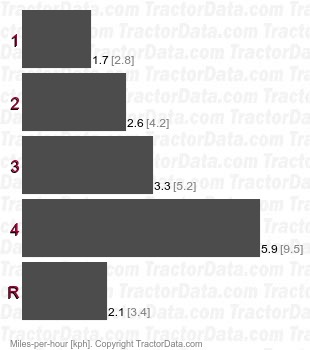

| Speeds |
|
