Century C47
| | 2005 - 2006 |
| Compact Utility tractor | | Kukje built |
|
Series map:
C42
C47
42.0hp
47.0hp
| Production |
| Distributor | Century
|
| Manufacturer | Kukje
|
| Compact Utility tractor |
| Built in Yangsu-ri, South Korea |
| Century C47 Power |
| Engine | 47 hp
35.0 kW
|
| PTO (claimed) | 40 hp
29.8 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | foot pedal
|
| Power steering |
| Differential wet disc brakes |
| Two-post folding ROPS. |
| Capacity |
| Fuel | 11.1 gal
42.0 L
|
| Hydraulic system | 9.25 gal
35.0 L
|
| Front axle | 7.4 qts
7.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 9.25 gal
35.0 L
|
| Valves | 1 to 3
|
| Pump flow | 8.9 gpm
33.7 lpm
|
| Total flow | 13.2 gpm
50.0 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 2580 lbs
1170 kg
|
| Power Take-off (PTO) |
| Rear PTO | live *2-stage clutch
|
| Rear RPM | 540/1000
|
| C47 Serial Numbers |
| Location: | Below PTO on rear of tractor.
|
| Electrical |
| Ground | negative
|
| Charging amps | 45
|
| Battery volts | 12
|
| References |
 |
| Operator's Manual C29. C35. C38L, C42L and C47L (948898) published in 2004 |
| Page information |
 |
| Copyright 2023 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on May 8, 2023 |
©2000-2023 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

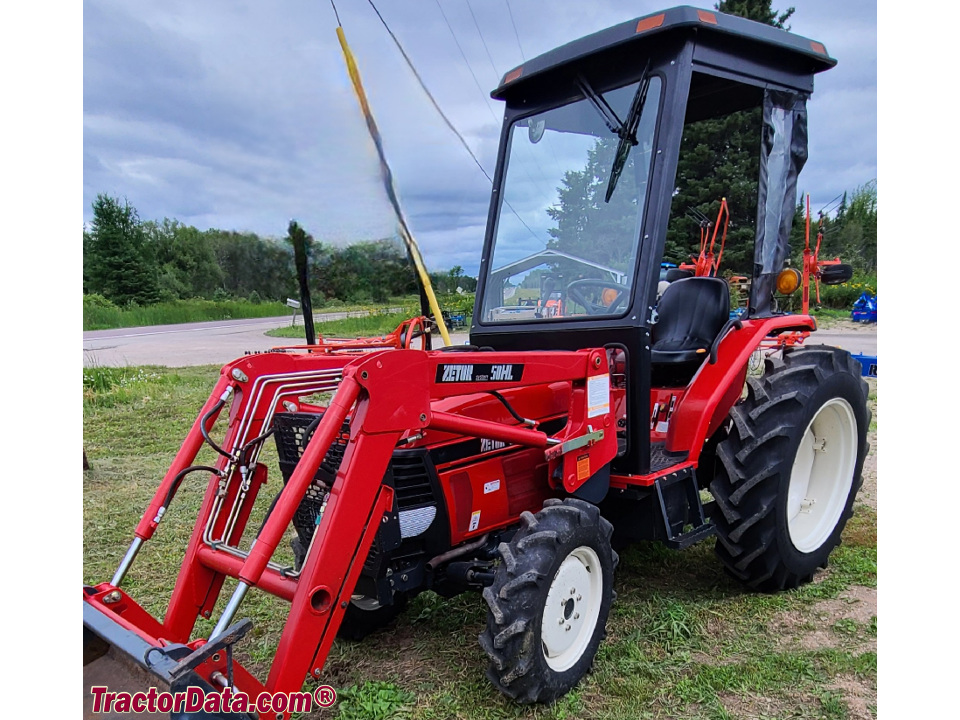

Century C47 photos...
