Caterpillar D6
|
|
| Production | |
| Manufacturer | Caterpillar |
| Agricultural Crawler tractor | |
| Built in Peoria, Illinois, USA | |
| Caterpillar D6 Engines | |
| Caterpillar 7.7L 6-cyl diesel | |
| Caterpillar 8.6L 6-cyl diesel | |
| Fuel tank | 48 gal 181.7 L |
 Engine details ... | |
| Caterpillar D6 Transmission | |
| 5-speed gear | |
 Transmission details ... |
| Caterpillar D6 Power | |
| Drawbar (tested) | 74.82 hp 55.8 kW |
| Belt (tested) | 92.52 hp 69.0 kW |
 Performance test details ... | |
| Mechanical | |
| Drive | crawler |
| Steering | manual clutch |
| Contracting band brakes | |
| Open operator station. | |

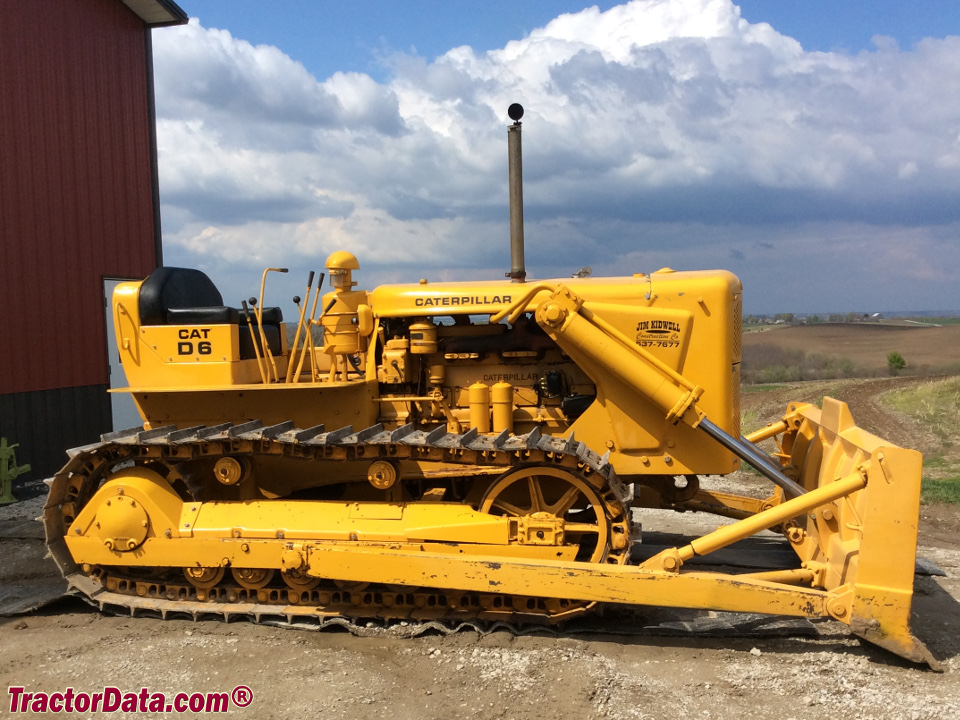

| Photos | |
 | |
 Caterpillar D6 photos... | |
| Dimensions & Tracks | |
| Wheelbase | 85.625 inches 217 cm |
| Weight | 16695 to 17330 pounds |
| 16-inch tracks | |
 Full dimensions and tracks ... | |
| Belt Pulley | |
| Diameter | 13 inches 33 cm |
| Width | 13 inches 33 cm |
| RPM | 913 |
| Speed | 3200 ft/min 975.36 meters/min |
| References | |
 | |
| Product Line published in 1953, by Caterpillar | |
| Farming on the contour published in 1954, by Caterpillar |
