Tractors > Caterpillar > D7

Caterpillar D7 - tests

Caterpillar D7 tractor photo
1940 - 1961
Agricultural Crawler tractor
Previous model:Caterpillar RD7
more Caterpillar D7 specifications...






Nebraska Tractor Test 358:

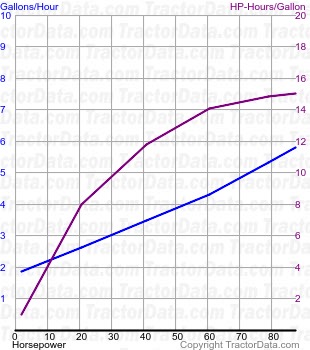

D7 fuel use from test 358
Test Date:October 2 - 11, 1940
Type:Diesel 5-speed crawler
Belt power (max):89.10 hp [66.4 kW]
Belt fuel use (max):6.0 gal/hour [22.7 l/hour]
Drawbar power (max):78.48 hp [58.5 kW]
Drawbar pull (max):21,351 lbs [9684 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 582:

D7 fuel use from test 582
Test Date:July 23 - August 6, 1956
Type:Diesel 5-speed crawler
Belt power (max):121.70 hp [90.8 kW]
Belt fuel use (max):9.7 gal/hour [36.7 l/hour]
Drawbar power (max):103.65 hp [77.3 kW]
Drawbar pull (max):26,286 lbs [11923 kg]
Max pull gear:1
Test report:PDF file


Nebraska Tractor Test 710:

Test Date:August 3 - 11, 1959
Type:Turbo diesel 5-speed crawler
Drawbar power (max):109.79 hp [81.9 kW]
Drawbar fuel use (max):8.3 gal/hour [31.4 l/hour]
Drawbar pull (max):28,274 lbs [12825 kg]
Max pull gear:1
Test report:PDF file
