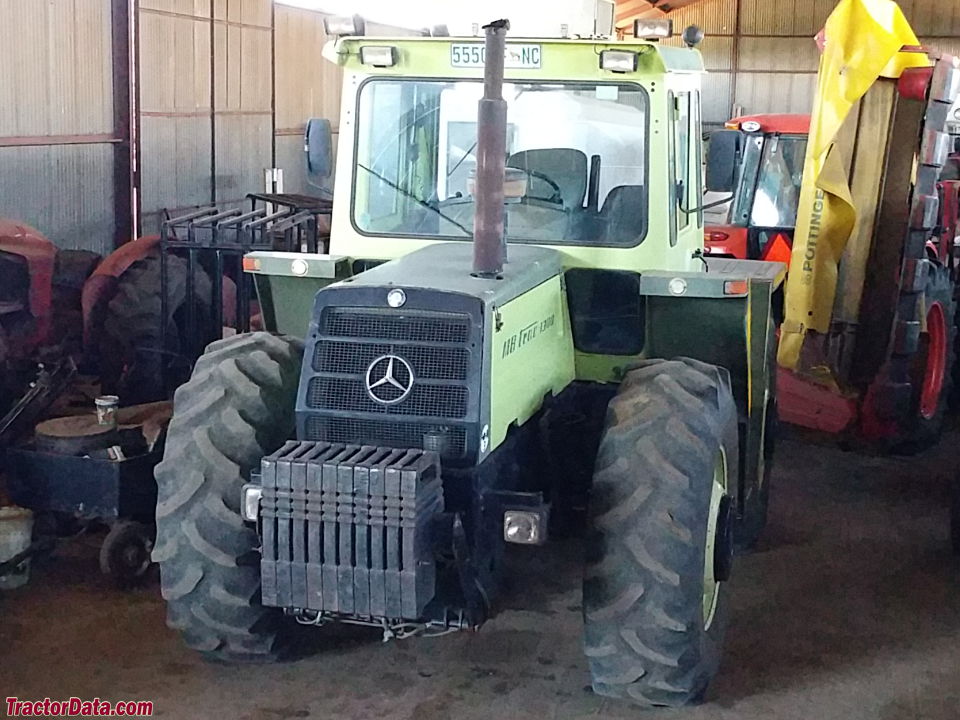

Mercedes-Benz Trac 1300
| | 1976 - 1991 |
|
| Four-wheel Drive (4WD) tractor |
|
| Production |
| Manufacturer: | Mercedes-Benz
|
| Type: | Four-wheel Drive (4WD) tractor
|
| Mercedes-Benz Trac 1300 Power |
| Engine: | 125 hp
93.2 kW
|
| Mechanical |
| Chassis: | 4x4 4WD
|
| Steering: | power
|
| Brakes: | hydraulic drum
|
| Cab: | Cab standard. Air-conditioning optional.
|
| Transmissions: | 14-speed synchronized
|
| | 22-speed creeper
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 15.9 gpm
60.2 lpm
|
| Tractor hitch |
| Rear Type: | II/III
|
| Rear lift: | 11023 lbs
5000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000*Option between 1.375 and 1.75 inch PTO shafts.
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 35
|
| Charging volts: | 14
|
| Battery volts: | 12
|
