Mercedes-Benz Trac 1100

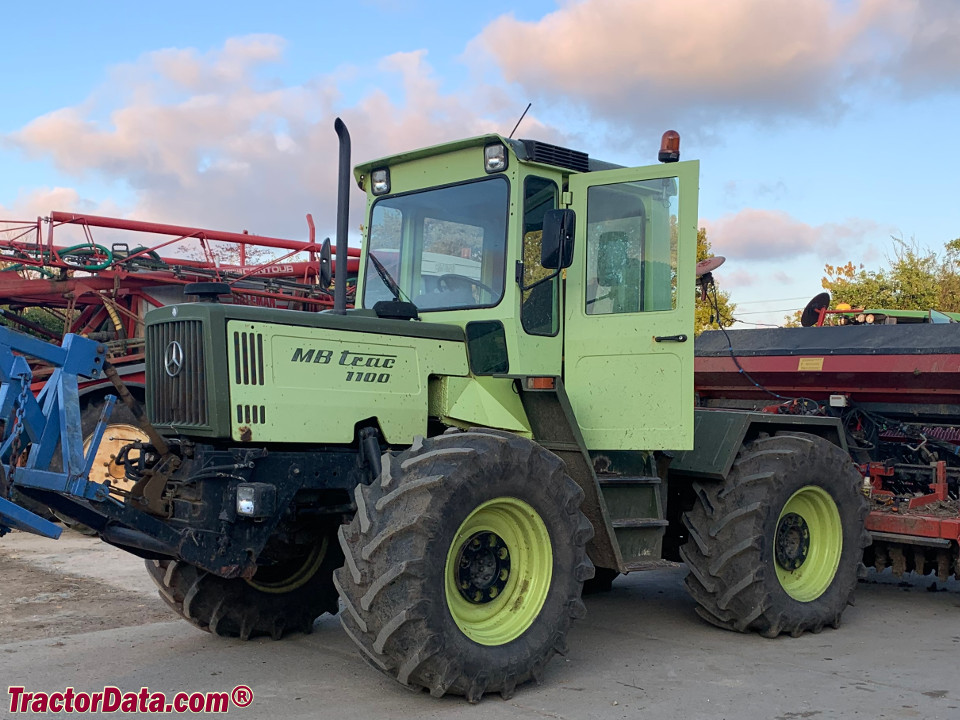

Mercedes-Benz Trac 1100 tractor photo
1976 - 1991
Model year
Four-wheel Drive (4WD) tractor
Series:Trac 1000Trac 1100Trac 1300
Production
Manufacturer:Mercedes-Benz
Type:Four-wheel Drive (4WD) tractor
Mercedes-Benz Trac 1100 Power
Engine:110 hp
82.0 kW
Mercedes-Benz Trac 1100 Engine
Mercedes-Benz 5.7L 6-cyl diesel
Fuel tank:44.9 gal
169.9 L
Engine details ...
Mechanical
Chassis:4x4 4WD
Final drives:external planetary
Steering:power
Brakes:hydraulic drum
Trailer brakes:pneumatic*Optional
Cab:Cab standard. Optional air-condtioning.
Transmissions:14-speed synchronized
 22-speed creeper
Transmission details ...
Photos
No photos of the Mercedes-Benz Trac 1100 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pressure:2901 psi
200.0 bar
Pump flow:11.9 gpm
45.0 lpm
 15.9 gpm
60.2 lpm ((Optional)
Tractor hitch
Rear Type:II
Rear lift:8992 lbs
4078 kg
 13490 lbs
6119 kg *Optional
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Front PTO:independent*Optional
Front RPM:540/1000
Dimensions & Tires
Wheelbase:104.3 inches
264 cm
Weight:12346 lbs
5600 kg
Front tire:14.9-30
Rear tire:14.9-30
Full dimensions and tires ...
Electrical
Charging system:alternator
Charging amps:35
Charging volts:14
Battery volts:12
Battery AH:110
