Tractors > Fordson > E27N Major
      -Brand search:


    Fordson E27N Major

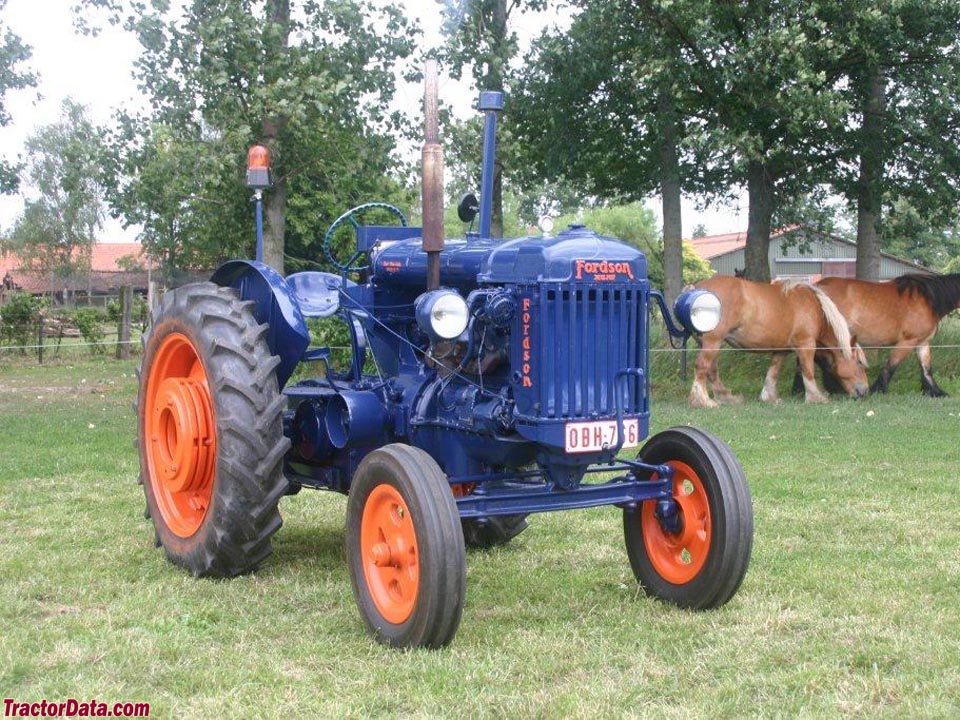

    Fordson E27N Major tractor photo
    1945 - 1952
    Previous model:Fordson Fordson N
    Next model:Fordson New Major





    The Fordson E27N Major was a minor upgrade of the Fordson N, which itself was very similar to the original Fordson F. Post-war shortages delayed the development of an entirely new tractor. It was known simply as the the Fordson Major until 1953, when the E1A "New Major" entered production. After that, it became common to use the E27N Major designation.


    Production:

    Manufacturer:Fordson
    Factory:Dagenham, England


    Fordson Major Engines:

       Ford 4.4L 4-cyl gasoline
       Perkins 4.7L 6-cyl diesel
    full engine details ...


    Capacity:

    Fuel:21 gal [79.5 L]
    Aux. fuel:1.2 gal [4.5 L]


    Power Take-off (PTO):

    Rear PTO:transmission
    Rear RPM:540 (1.375)
    Engine RPM:574@1200


    Dimensions & Tires:

    Wheelbase:77 inches [195 cm]
    Weight:4,340 lbs [1968 kg]
    Front tire:6.00-19
    Rear tire:11.00-36
    full dimensions and tires ...


    Major Serial Numbers:

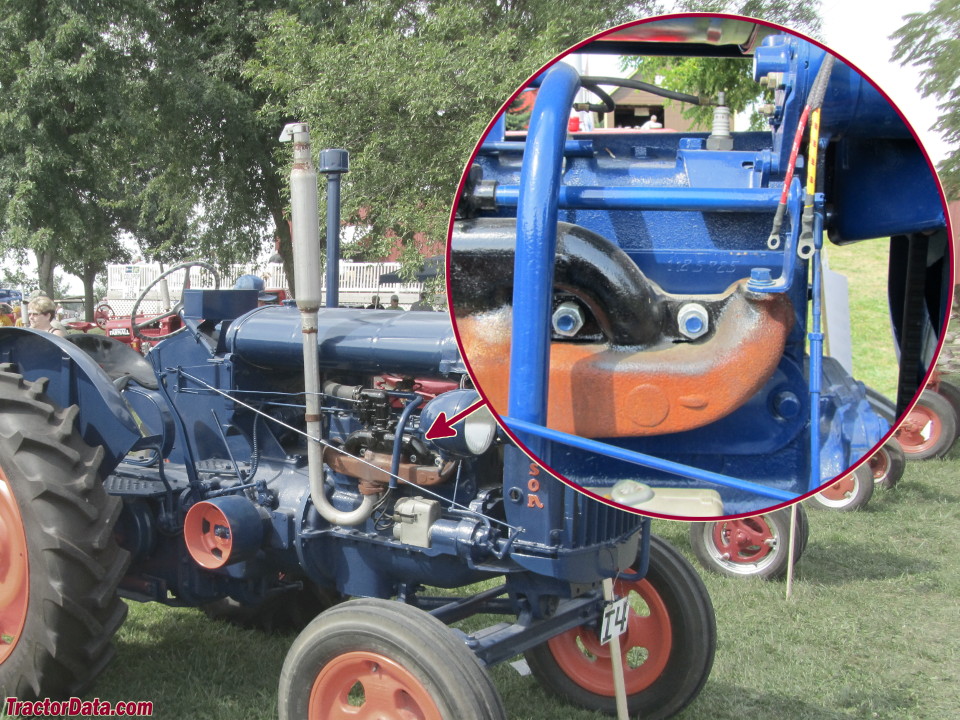

    photo of Major serial number

    1945: 980520
    1946: 993489
    1947: 1018978
    1948: 1054094
    1949: 1104657
    1950: 1138235
    1951: 1180610
    1952: 1216575
    Final: 1216990

    how to read serial numbers...



    Fordson Major Power:

    Engine:45 hp [33.6 kW]


    Mechanical:

    Chassis:4x2 2WD
    Steering:manual
    Brakes:mechanical drum foot brakes, wet disc hand brake
    Cab:Open operator station.


    Belt Pulley:

    Diameter:9.75 inches [24 cm]
    RPM:1200
    Speed:2,976 ft/min [907.08 meters/min]


    Electrical:

    Ground:positive
    Charging system:generator


    Battery:

    Number:1
    Volts:12
    Amp-hours:57
