Tractors > Fordson > Fordson N

Fordson Fordson N Tests



Fordson Fordson N tractor photo
1929 - 1945
Standard-tread tractor
Series map:
Fordson N
21.0hp
Tractor Tests
NTTL 173: kerosene 3-speed 2WD
NTTL 174: gasoline 3-speed 2WD
Nebraska Tractor Test 173

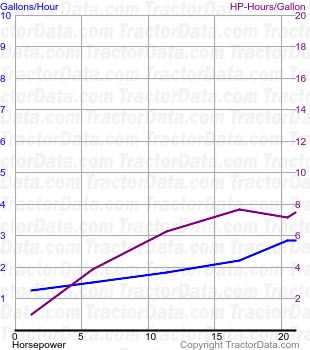

Fordson N fuel use from test 173
Nebraska Tractor Test 173
Kerosene 3-speed 2WD
March 11 - April 8, 1930
Link: Nebraska Tractor Test 173 file
Belt power (max)23.24 hp
17.3 kW
Belt fuel use (max)3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power13.60 hp
10.1 kW
Gear 1 used for power test.
Max pull3,289 lbs
1491 kg
Gear 1 used for pull test.
Nebraska Tractor Test 174

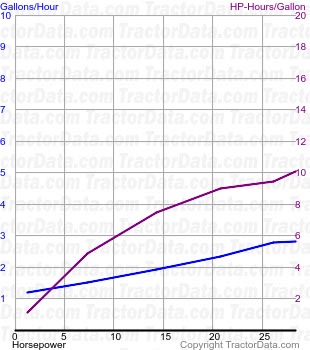

Fordson N fuel use from test 174
Nebraska Tractor Test 174
Gasoline 3-speed 2WD
March 20 - April 10, 1930
Link: Nebraska Tractor Test 174 file
Belt power (max)29.09 hp
21.7 kW
Belt fuel use (max)3.1 gal/hour
11.7 l/hour
Drawbar performance
Max power18.30 hp
13.6 kW
Gear 2 used for power test.
Max pull3,202 lbs
1452 kg
Gear 1 used for pull test.
