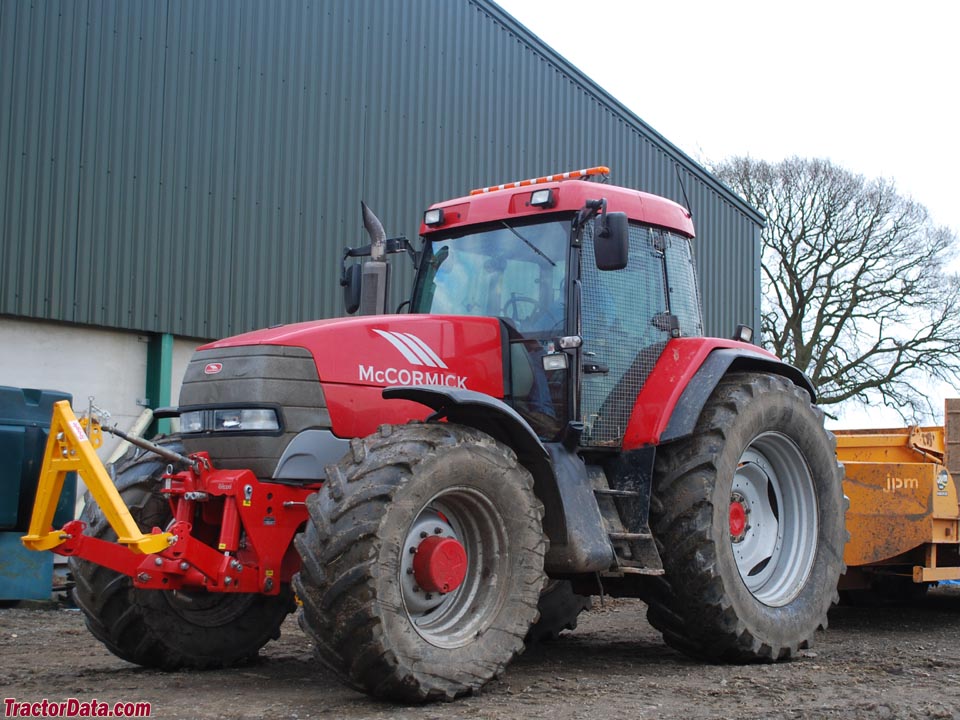

McCormick Intl MTX185
| | 2004 - 2005 |
| MTX Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | McCormick Intl
|
| Type: | Row-Crop tractor
|
| Factory: | Doncaster, England
|
| The McCormick MTX185 is similar to the McCormick XTX200. |
| McCormick Intl MTX185 Power |
| Engine: | 195.8 hp
146.0 kW
|
| PTO (claimed): | 160 hp
119.3 kW
|
| Drawbar (tested): | 140.38 hp
104.7 kW
|
| PTO (tested): | 192.3 hp
143.4 kW
|
| power test details ... |
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | hydrostatic power
|
| Brakes: | differential hydraulic wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 16-speed
|
| | 32-speed eight-speed power shift
|
 Transmission details ... |
| Hydraulics |
| Type: | pressure flow compensating
|
| Pump flow: | 32.0 gpm
121.1 lpm
|
| Tractor hitch |
| Rear Type: | III
|
| Control: | electronic lower link draft sensing
|
| Rear lift: | 18361 lbs
8328 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 95
|
| | 120 (optional)
|
| Battery volts: | 12
|
