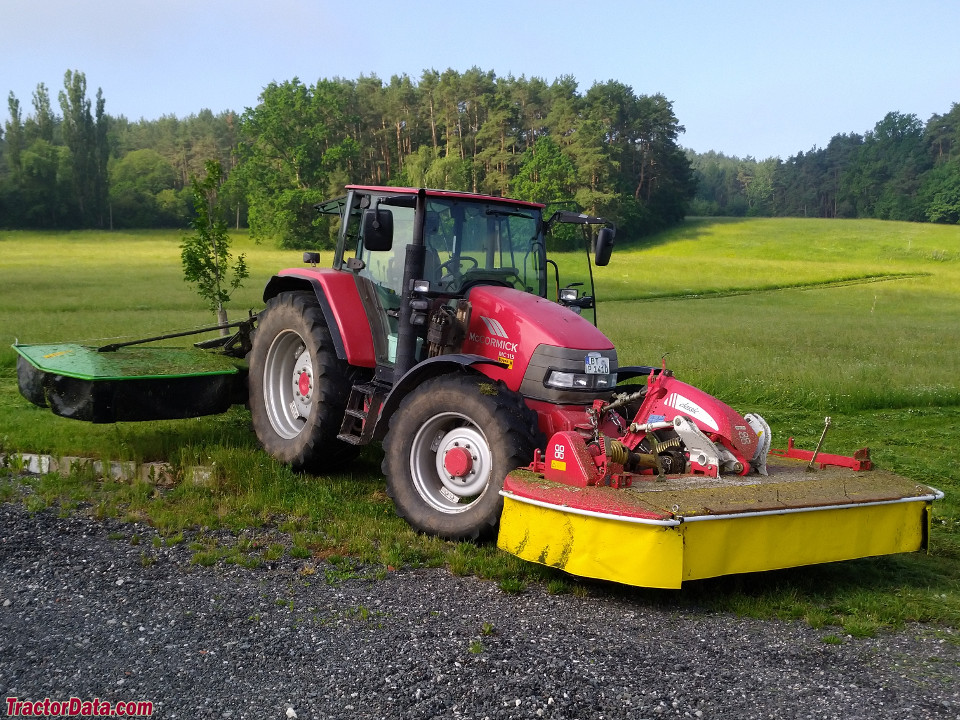

McCormick Intl MC115
| | 2003 - 2007 |
| MC Series | | Utility tractor |
|
| Production |
| Manufacturer: | McCormick Intl
|
| Type: | Utility tractor
|
| Factory: | Doncaster, England
|
| McCormick Intl MC115 Power |
| Engine: | 115 hp
85.8 kW
|
| PTO (claimed): | 96 hp
71.6 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Cab standard with air-conditioning.
|
| Transmissions: | 16-speed four-speed power shift
|
| | 32-speed creeper
|
 Transmission details ... |
| Capacity |
| Fuel: | 51.8 gal
196.1 L
|
| Hydraulic system: | 19.8 gal
74.9 L
|
| Hydraulics |
| Type: | load-sensing
|
| Capacity: | 19.8 gal
74.9 L
|
| Valves: | 2 to 4
|
| Pump flow: | 28.8 gpm
109.0 lpm
|
| Tractor hitch |
| Rear Type: | IIN
|
| Rear lift (at 24"/610mm): | 8201 lbs
3719 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000 (1.375)
|
| Engine RPM: | 540@2163
1000@2000
|
| Electrical |
| Charging system: | alternator
|
| Charging amps: | 95
|
