Fendt Farmer 312

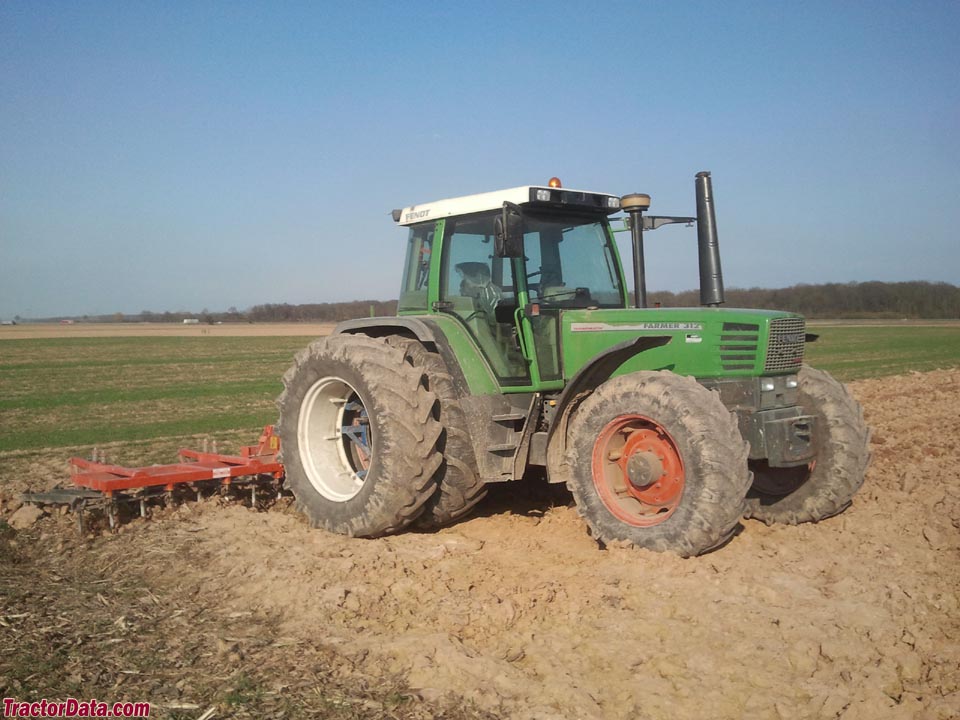

Fendt Farmer 312 tractor photo
1993 - 2000
Farmer 300 Series
Row-Crop tractor
Series map:
Farmer 311
Farmer 312
85.8kw
93.2kw
Production
ManufacturerFendt
Row-Crop tractor
Fendt Farmer 312 Engine
MWM 6.2L 6-cyl diesel
Fuel tank42.3 gal
160.1 L
Engine details ...
Fendt Farmer 312 Power
Engine125 hp
93.2 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Hydraulic disc brakes
Cab standard with air-conditioning.
Hydraulics
Pump flow19.8 gpm
74.9 lpm
Tractor hitch
Rear lift12819 lbs
5814 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/750/1000
Front PTOindependent OptOptional
Clutchelectro-hydraulic
Front PTO Type1000
Dimensions & Tires
Wheelbase101.9 inches
258 cm
Weight11796 lbs
5350 kg
Front tire420/70R28
Rear tire520/70R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps95
Battery volts12
Battery AH135
References
Farmer 312 references literature
Farmer 307 - 308 - 309 - 310 - 311 - 312 published in 1993, by Fendt
