Fendt Farmer 260S Transmission


Fendt Farmer 260S tractor photo
1987 - 2002
Farmer 200 Series
Row-Crop tractor
Series:Farmer 250SFarmer 260SFarmer 275S
Transmissions overview
21-speed
21-speed shuttle
Transmission
Gears:21 forward and 6 reverse
Gearshift with three gears (1-3), plus reverse (R), and three overdrive gears (25, 30, and 40 kph). Triple range gear split provides three speeds for each of the non-overdrive gears. Low and high ranges. Transmission also available with addition super-creeper range providing 30 gears forward and 9 reverse.
Speeds

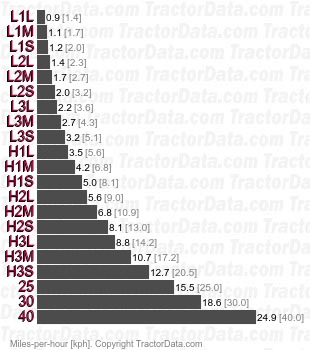

Farmer 260S   speeds
Transmission
Type:shuttle
Gears:21 forward and reverse
