Fendt Farmer 304LS

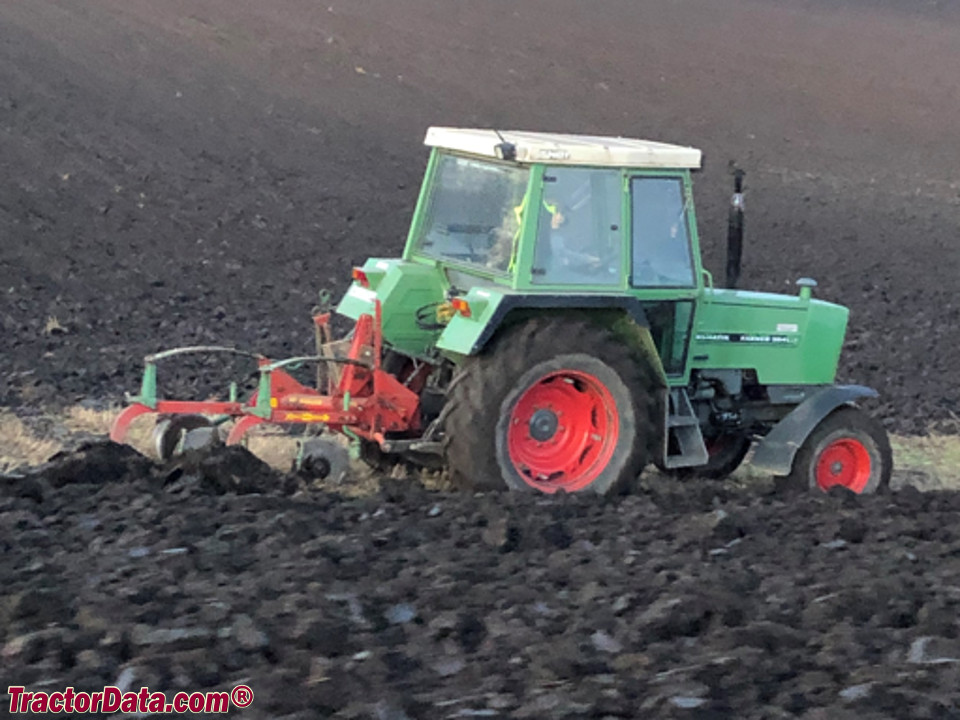

Fendt Farmer 304LS tractor photo
1982 - 1998
Farmer 300 Series
Utility tractor
Series:Farmer 303LSFarmer 304LS
Type:Utility tractor
Fendt Farmer 304LS Power
Engine:58 hp
43.3 kW
Fendt Farmer 304LS Engine
MWM 3.1L 3-cyl diesel
Fuel tank:21.1 gal
79.9 L
Engine details ...
Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:hydraulic drum
Cab:Cab standard with heat. Air-conditioning optional.
Transmission:15-speed synchromesh
Transmission details ...
Type:open center
Pump flow:10.6 gpm
40.1 lpm
Steering flow:9.25 gpm
35.0 lpm
Tractor hitch
Rear lift:4718 lbs
2140 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
2WD Wheelbase:90 inches
228 cm
4WD Wheelbase:86.3 inches
219 cm
Weight:7154 to 7441 pounds
Front tire:10.00-16
2WD Rear tire:13.6R36
Full dimensions and tires ...
Charging system:alternator
Charging amps:33
Battery volts:12
Battery AH:88
