Fendt Farmer 105LS
| | 1977 - 1985 |
| Farmer 100 Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | Fendt
|
| Type: | Row-Crop tractor
|
| Fendt Farmer 105LS Power |
| Engine: | 59 hp
44.0 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Cab: | Cab standard with available heater.
|
| Transmissions: | 13-speed synchronized
|
| | 16-speed creeper
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pressure: | 2538 psi
175.0 bar
|
| Pump flow: | 11.6 gpm
43.9 lpm
|
| Tractor hitch |
| Rear lift: | 6107 lbs
2770 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540/1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 28
|
| Charging volts: | 14
|
| Battery volts: | 12
|
| Battery AH: | 110
|
| Page information |
| Last update: | February 9, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

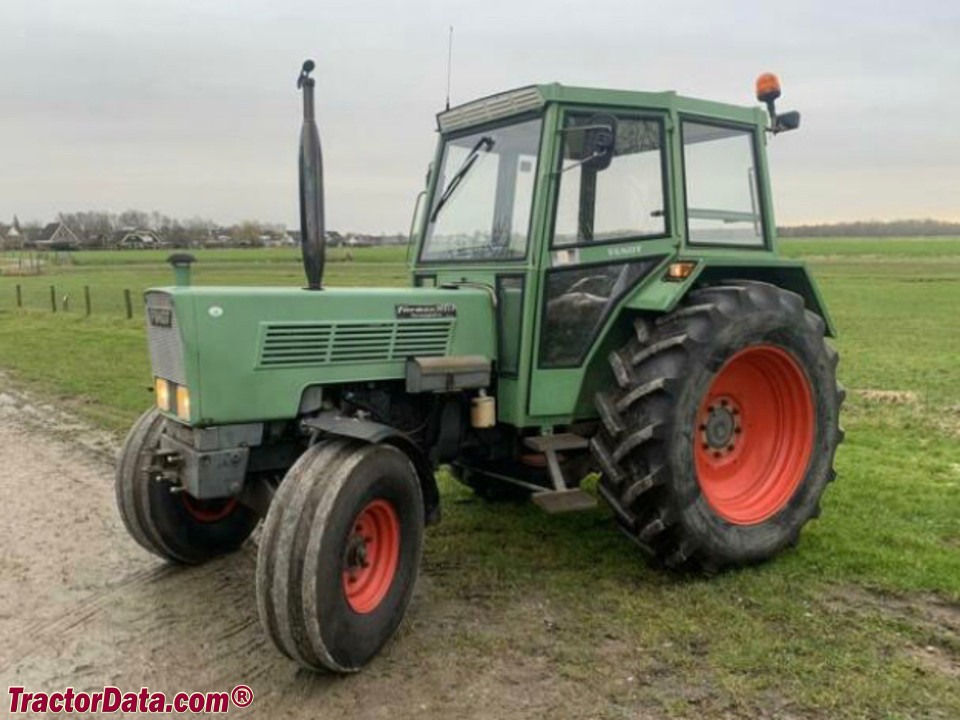

Fendt Farmer 105LS photos...
Full dimensions and tires ...
