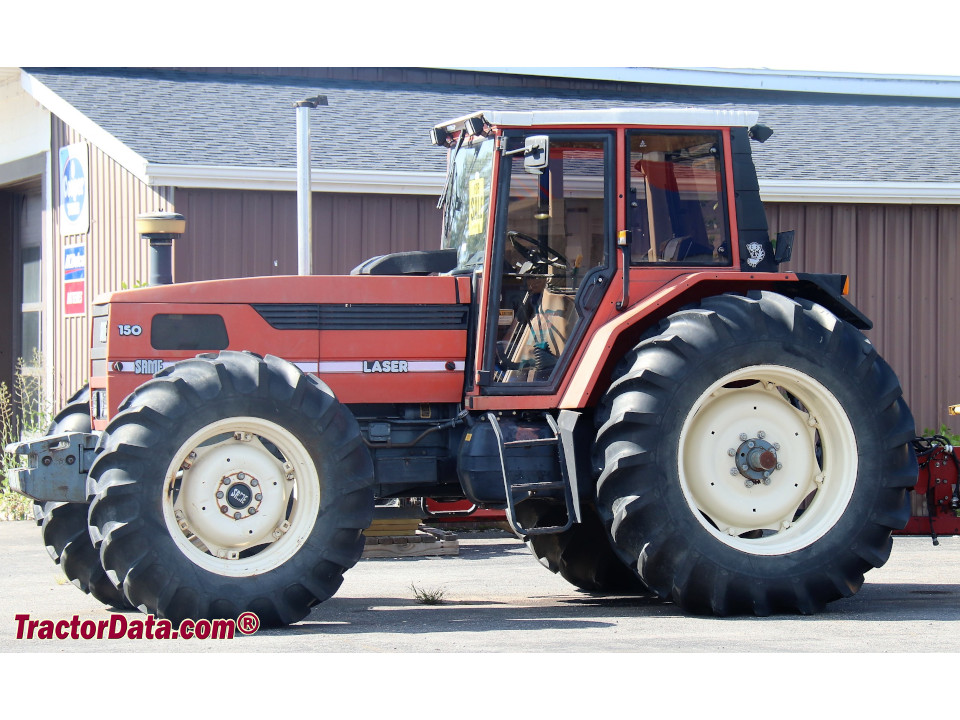

SAME Laser 150
| | 1983 - 1996 |
| Laser Series | | Row-Crop tractor |
|
| Production |
| Manufacturer: | SAME
|
| Type: | Row-Crop tractor
|
| SAME Laser 150 Power |
| Engine: | 114 hp
85.0 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | planetary
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic wet disc
|
| Cab: | Cab standard with available air-conditioning.
|
| Transmissions: | 24-speed two-speed power shift
|
| | 16-speed creeper
|
 Transmission details ... |
| Photos |
| No photos of the SAME Laser 150 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Pump flow: | 16.9 gpm
64.0 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | position and draft control
|
| Rear lift: | 15435 lbs
7001 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | hydraulic wet disc
|
| Rear RPM: | 540/1000 (1.375)
|
| Electrical |
| Ground: | negative
|
| Battery volts: | 12
|
| Page information |
| Last update: | June 1, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Full dimensions and tires ...
