Tractors > SAME > Explorer 90

SAME Explorer 90

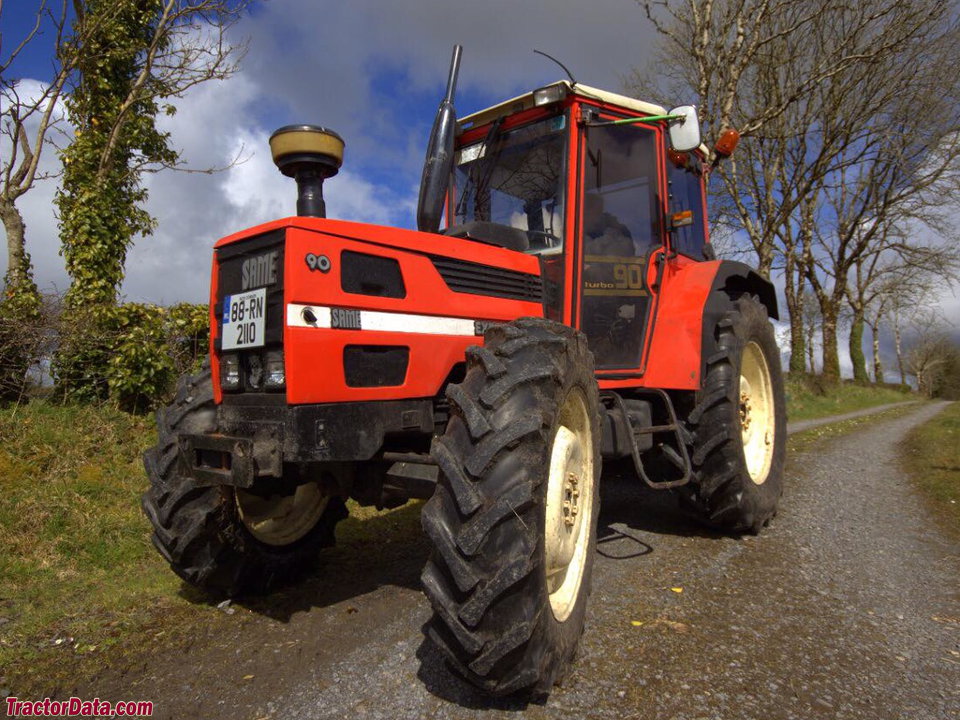

SAME Explorer 90 tractor photo
1986 - 1990   Explorer Series
Utility tractor
Series back:SAME Explorer 80






Production:

Manufacturer:SAME


SAME Explorer 90 Engine:

   SAME 4.0L 4-cyl diesel
full engine details ...


Capacity:

Fuel:29.1 gal [110.1 L]


3-Point Hitch:

Rear Type:II
Rear lift:7563 lbs [3430 kg]


Power Take-off (PTO):

Rear PTO:independent
Rear RPM:540/1000


Dimensions & Tires:

Wheelbase:95.3 inches [242 cm]
Weight:7563 lbs [3430 kg]
Front tire:7.50-18
Rear tire:16.9-34
full dimensions and tires ...


Explorer 90 Serial Numbers:


- Serial numbers unknown -



SAME Explorer 90 Power:

Engine:90 hp [67.1 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Cab:Cab with optional heater.


Hydraulics:

Pump flow:9.2 gpm [34.8 lpm]


Electrical:

Charging system:alternator


Battery:

Volts:12
