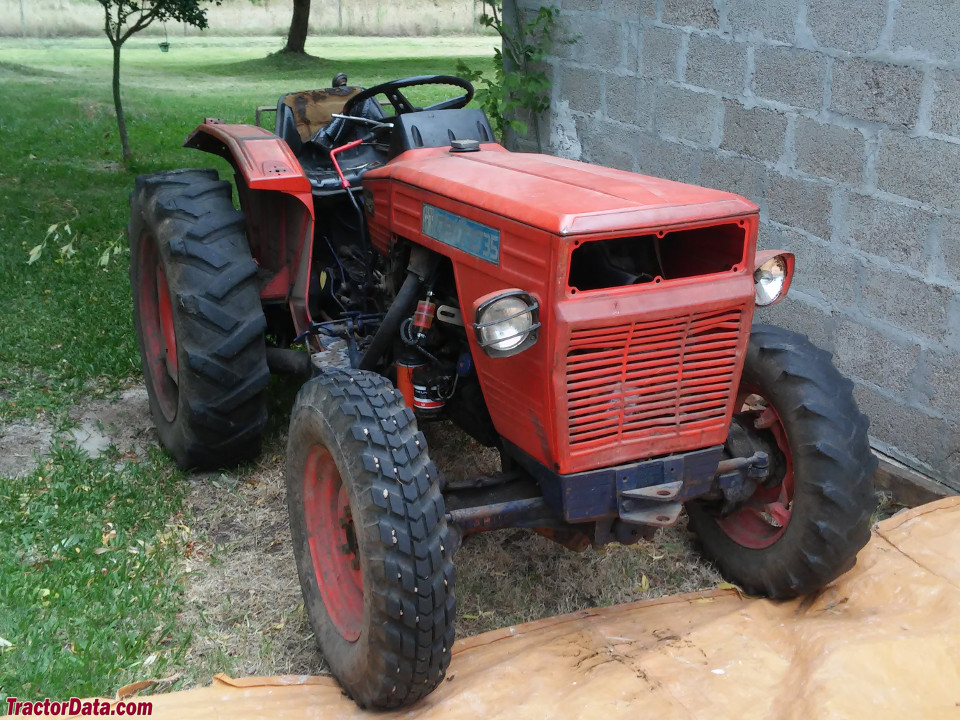

SAME Delfino 35
|
|
| Production | |
| Manufacturer | SAME |
| Utility tractor | |
| SAME Delfino 35 Engine | |
| SAME 1.8L 2-cyl diesel | |
| Fuel tank | 6.6 gal 25.0 L |
 Engine details ... | |
| SAME Delfino 35 Transmissions | |
| 6-speed | |
| 12-speed creeper | |
 Transmission details ... |
| SAME Delfino 35 Power | |
| Engine | 33.5 hp 25.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Steering | manual |
| Steering | power *Optional with four-wheel drive. |
| Dry disc brakes | |
| Open operator station. Four-post ROPS available. | |
| Photos | |
 | |
 SAME Delfino 35 photos... | |
| Hydraulics | |
| Pressure | 2133 psi 147.1 bar |
| Pump flow | 3.4 gpm 12.9 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift | 2954 lbs 1339 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 67.3 inches 170 cm |
| Weight | 3086 to 3417 pounds |
| Front tire | 6.00-16 |
| 2WD Rear tire | 11.2/10-28 |
 Full dimensions and tires ... | |
| References | |
 | |
| Delfino 35 published in 1980, by SAME | |
| Delfino 35 published in 1985, by SAME | |
| Delfino 35 published in 1991, by SAME | |
| Delfino 35 Orchard Version published in 1980, by SAME |
