Yanmar YM1700

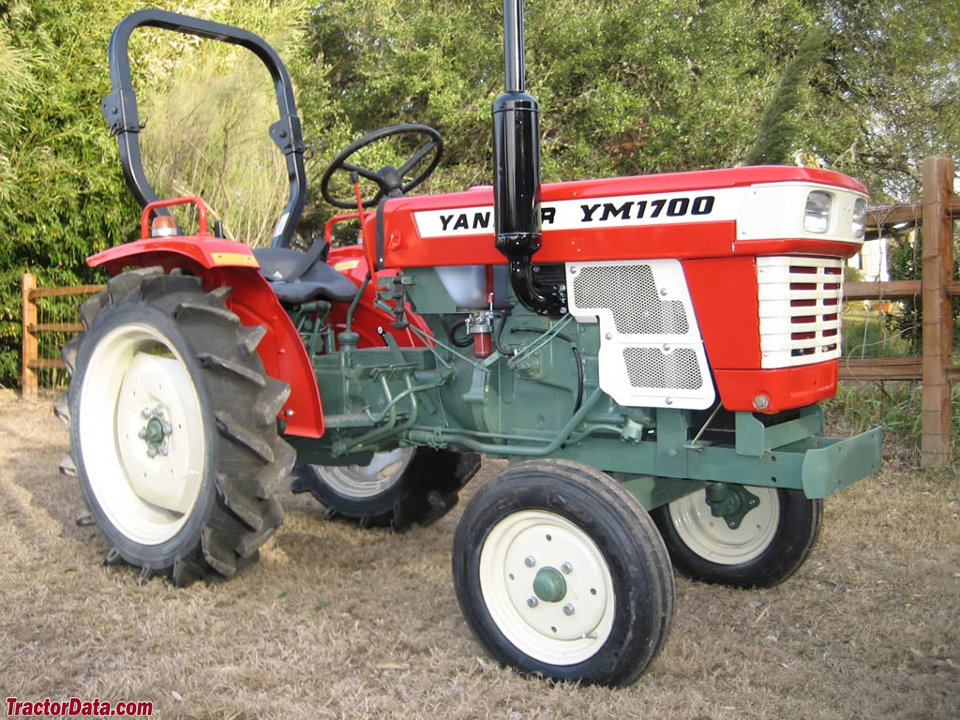

Yanmar YM1700 tractor photo
1982 - 1983
Compact Utility tractor
Production
Manufacturer:Yanmar
Type:Compact Utility tractor
Variants
YM1700:2WD
YM1700D:4WD
Yanmar YM1700 Power
Engine:17 hp
12.7 kW
Yanmar YM1700 Engine
Yanmar 1.0L 2-cyl diesel
Fuel tank:5.8 gal
22.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:manual
Brakes:mechanical drum
Cab:Open operator station.
Transmission:8-speed gear
Transmission details ...
Tractor hitch
Rear Type:I
Rear lift:1433 lbs
650 kg
Power Take-off (PTO)
Rear RPM:540/750/1000
Dimensions & Tires
Wheelbase:55.9 inches
141 cm
Weight:1829 to 1918 pounds
Front tire:4.00x12
Rear tire:8.3x24
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
