Yanmar YM1601

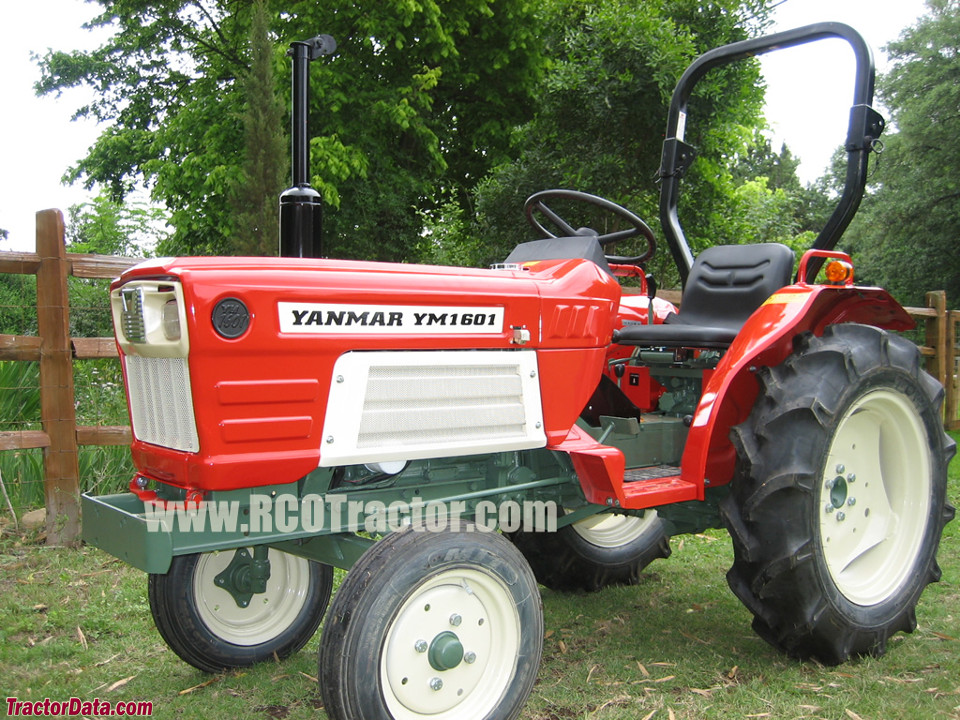

Yanmar YM1601 tractor photo
1979 - 1981
Compact Utility tractor
Production
Manufacturer:Yanmar
Type:Compact Utility tractor
Variants
YM1601:2WD gear
YM1601D:4WD gear
YM1610:2WD power shift
YM1610D:4WD power shift
Yanmar YM1601 Power
Engine:16 hp
11.9 kW
Yanmar YM1601 Engine
Yanmar 1.0L 3-cyl diesel
Fuel tank:5.4 gal
20.4 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Cab:Open operator station.
Transmission:12-speed gear
Transmission details ...
Power Take-off (PTO)
Rear RPM:540 (1.375)
Engine RPM:588@2500
769@2500
1111@2500
Dimensions & Tires
Weight:1477 to 1565 pounds
Front tire:4.00-12
2WD Rear tire:8.3-22
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
