International Harvester 856XL Transmission


International Harvester 856XL tractor photo
1983 - 1985
Row-Crop tractor
Transmissions overview
8-speed gear
16-speed two-speed power shift
Transmission
Type:gear
Gears:8 forward and 4 reverse
Clutch:310mm dry disc
Oil capacity:44.4 qts
42.0 L
Four gears in two ranges, plus reverse range.

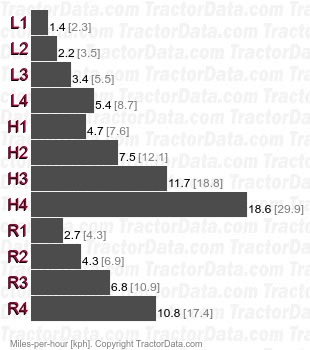

Speeds
30 KPH transmission shown.
856XL  gear speeds
Transmission
Transmission:IH Synchron
Type:two-speed power shift
Gears:16 forward and 4 reverse
Clutch:310mm dry disc
Oil capacity:44.4 qts
42.0 L
Four gears in two ranges, plus reverse range, with two-speed power shift.

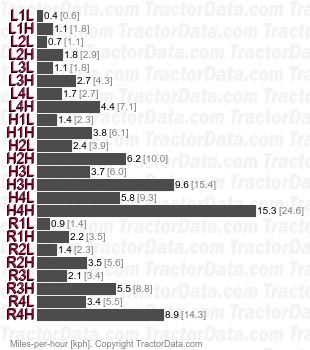

Speeds
856XL IH Synchron two-speed power shift speeds
