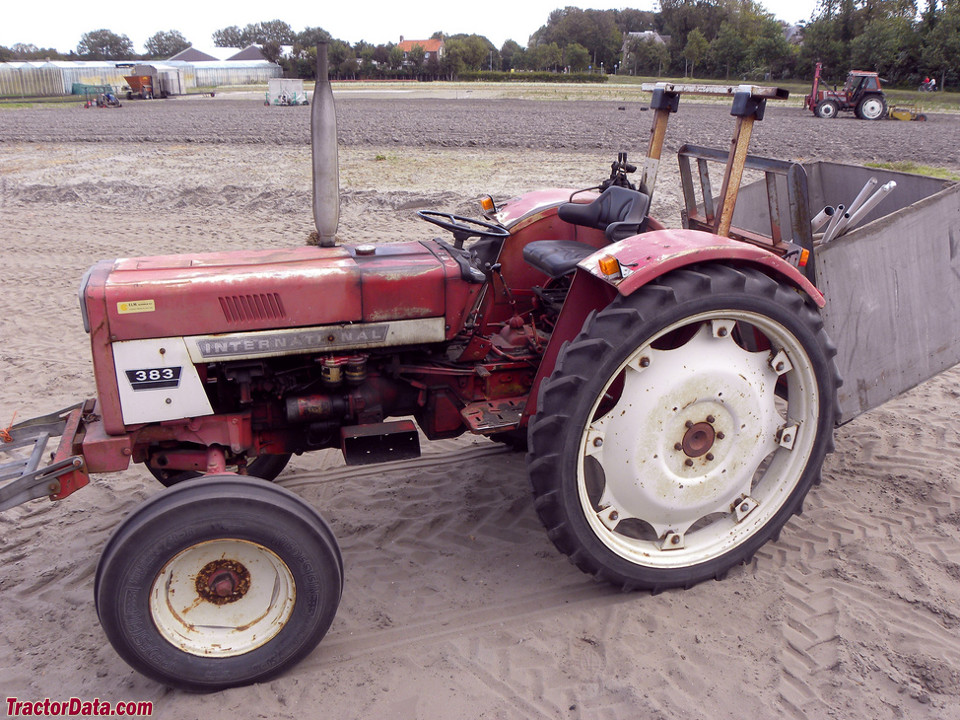

International Harvester 383
|
|
| Production | |
| Manufacturer | International Harvester |
| Utility tractor | |
| Built in Neuss, Germany | |
| International Harvester 383 Engine | |
| International Harvester 2.5L 3-cyl diesel | |
| Fuel tank | 15.9 gal 60.2 L |
 Engine details ... | |
| International Harvester 383 Transmissions | |
| 8-speed | |
| 16-speed creeper | |
 Transmission details ... |
| International Harvester 383 Power | |
| Engine (gross) | 38 hp 28.3 kW |
| Engine (net) | 35 hp 26.1 kW |
| Mechanical | |
| Two-wheel drive | |
| Open operator station. |
| Hydraulics | |
| Type | open center |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift | 3880 lbs 1759 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 75.6 inches 192 cm |
| Weight | 4553 lbs 2065 kg |
| Front tire | 5.50-16 |
| Rear tire | 11.2/12-28 |
 Full dimensions and tires ... | |
| Electrical | |
| Charging system | generator |
| Charging amps | 11 |
| Charging volts | 14 |
| Battery volts | 12 |
| Battery AH | 84 |
| References | |
 | |

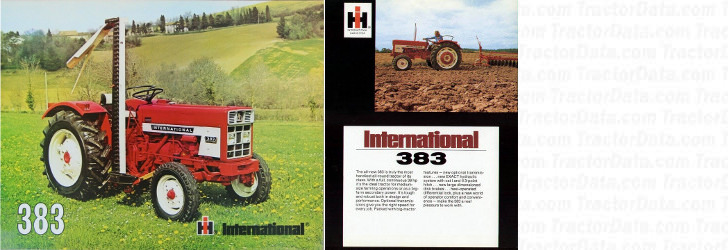

| 383 published in 1973, by International Harvester | |
| 383 published by International Harvester |
