| | 1965 - 1972 |
| Utility tractor |
|
Series map:
523
624
724
38.8kw
43.3kw
50.0kw
| Transmission options |
| 8-speed |
| 12-speed partial power shift |
| Transmission |
| Transmission | partially synchronized
|
| Gears | 8 forward and 4 reverse
|
| Oil capacity | 45.2 qts
42.8 L
|

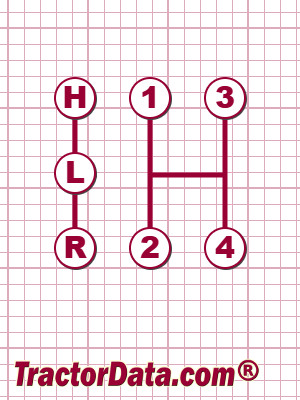

| Four gears (1-4) in high, low, and reverse ranges. Gear shifting is synchronized using the clutch. Tractor must be stoppped to shift range. |
| Speeds |
| With 16.9x30 rear tires. |
|
| Transmission |
| Transmission | Agriomatic S
|
| Type | partial power shift
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 40 qts
37.9 L
|
| The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. |

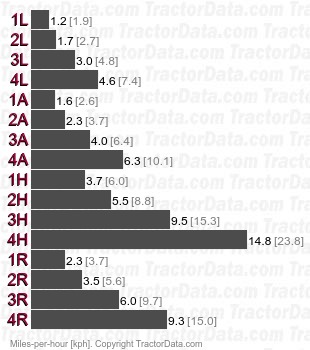

| Speeds |
| With 16.9x30 rear tires. |
|
