UTB/Universal 453 Transmission


No photo available
1988 - 2004
Transmissions overview
8-speed constant mesh
12-speed creeper
Transmission
Type:constant mesh
Gears:8 forward and 2 reverse
Clutch:dry disc

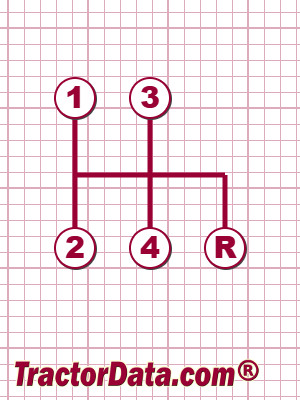

Four gears (1-4) plus reverse (R) in two ranges (low and high).
Speeds
With 14.9-28 rear tires.

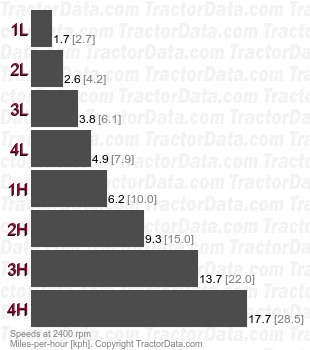

453  constant mesh speeds
Transmission
Type:creeper
Gears:12 forward and 3 reverse
Clutch:dry disc
Optional creeper adds a third range to the basic transmission.
Speeds
With 14.9-28 rear tires.

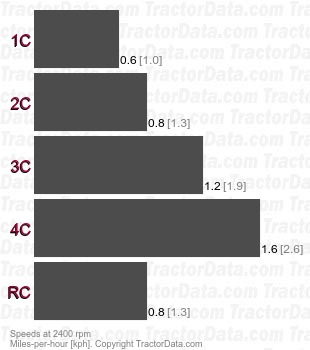

453  creeper speeds
