AGCO Allis 9735 Tests



AGCO Allis 9735 tractor photo
1998 - 2001
9700 Series
Row-Crop tractor
Series map:
9735
9745
138.9hp*
161.1hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1758

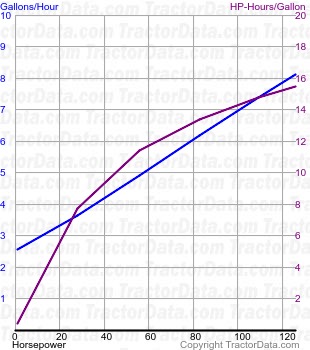

9735 fuel use from test 272
OCED Tractor Test 1758
Diesel 32-speed 4WD
October 2 - November 19, 1998
Link: OCED Tractor Test 1758 file
PTO performance
Max power137.32 hp
102.4 kW
Fuel use7.8 gal/hour
29.5 l/hour
Power at rated engine speed125.58 hp
93.6 kW
Fuel use8.1 gal/hour
30.7 l/hour
Power at rated PTO speed132.17 hp
98.6 kW
Fuel use8.1 gal/hour
30.7 l/hour
Drawbar performance
Max power114.13 hp
85.1 kW
Fuel use8.2 gal/hour
31.0 l/hour
Gear 1HB used for power test.
Max pull14,836 lbs
6729 kg
Gear 2LB used for pull test.
