Tractors > AGCO Allis > 9670

AGCO Allis 9670 Tests

1994 - 1995

9600 Series

Row-Crop tractor

Series map:

9650

9670

9690

172.2hp*

194.4hp*

216.7hp*

*Estimated engine power for comparison only.

OCED Tractor Test 1683

OCED Tractor Test 1683
Diesel 18-speed 4WD October 6 - 21, 1994 Link: OCED Tractor Test 1683 file

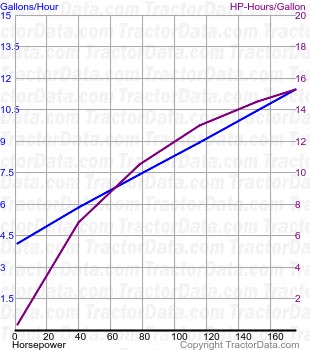

PTO performance
Max power	181.12 hp 135.1 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Power at rated engine speed	175.19 hp 130.6 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Power at rated PTO speed	181.12 hp 135.1 kW
Fuel use	10.9 gal/hour 41.3 l/hour
Drawbar performance
Max power	152.23 hp 113.5 kW
Fuel use	11.5 gal/hour 43.5 l/hour
Gear 7 used for power test.
Max pull	18749 lbs 8504 kg
Gear 4 used for pull test.
