AGCO Allis 8745


AGCO Allis 8745 tractor photo
1998 - 1999
8700 Series
Utility tractor
Series map:
8745
8765
77.8hp*
94.4hp*
*Estimated engine power for comparison only.
Production
ManufacturerAGCO Allis (a part of AGCO)
Utility tractor
Built in Beauvais, France
Original price$31,113 (1998 2WD gear ROPS )
$34,884 (1998 shuttle 2WD ROPS )
$39,013 (1998 gear 2WD cab )
$42,784 (1998 shuttle 2WD cab )
Variants
6410similar White model
AGCO Allis 8745 Engines
SisuDiesel 4.4L 4-cyl diesel
Cummins 3.9L 4-cyl diesel
ROPS Fuel tank33 gal
124.9 L
Cab Fuel tank37 gal
140.0 L
Engine details ...
AGCO Allis 8745 Transmissions
12-speed partially synchronized
12-speed synchronized shuttle
24-speed power shuttle
Transmission details ...
AGCO Allis 8745 Power
PTO (claimed)70 hp
52.2 kW
PTO (tested)76.40 hp
57.0 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Final drivesoutboard planetary
Differential lockelectro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Photos
No photos of the AGCO Allis 8745 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeopen center
Pressure3045 psi
210.0 bar
Valves2 or 3
Pump flow10 gpm (remotes)
37.9 lpm
 7 gpm (hitch)
26.5 lpm
SCV flow10 gpm
37.9 lpm
 17.9 gpm*Combined flow by locking out three-point hitch.
67.8 lpm
Total flow25.8 gpm
97.7 lpm
Steering flow7.9 gpm
29.9 lpm
Tractor hitch
Rear TypeII
Controlelectronic draft sensing
Rear lift (at 24"/610mm)4100 lbs
1859 kg
 6200 lbsOptOptional
2812 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Dimensions & Tires
Wheelbase99 inches
251 cm
Weight6820 to 8700 pounds
Front tire9.5L-15
Rear tire18.4R30
Full dimensions and tires ...
8745 Serial Numbers
Location:Console, right side
1998G01001
1999H01001

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Battery volts12
References

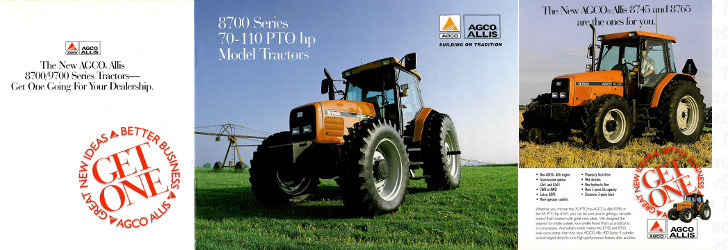

8745 references literature
New 8700/9700 Series Tractors published in 1997, by AGCO
8700 Series Tractors published in 2001, by AGCO
8745 - 8765 published in 1997, by AGCO
