Deutz D 4506
| | 1971 - 1981 |
| 06 Series | | Utility tractor |
|
| Production |
| Manufacturer: | Deutz
|
| Type: | Utility tractor
|
| Variants |
| D 4506: | 2WD
|
| D4506A: | 4WD
|
| Deutz D 4506 Power |
| Engine: | 40 hp
29.8 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | manual
|
| | hydraulic power (D4506A)
|
| Cab: | Cab optional with heater.
|
| Transmissions: | 8-speed
|
| | 8-speed synchromesh
|
| | 12-speed synchromesh
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 6.7 gpm
25.4 lpm
|
| Power Take-off (PTO) |
| Rear RPM: | 540
|
| Page information |
| Last update: | December 31, 2021
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

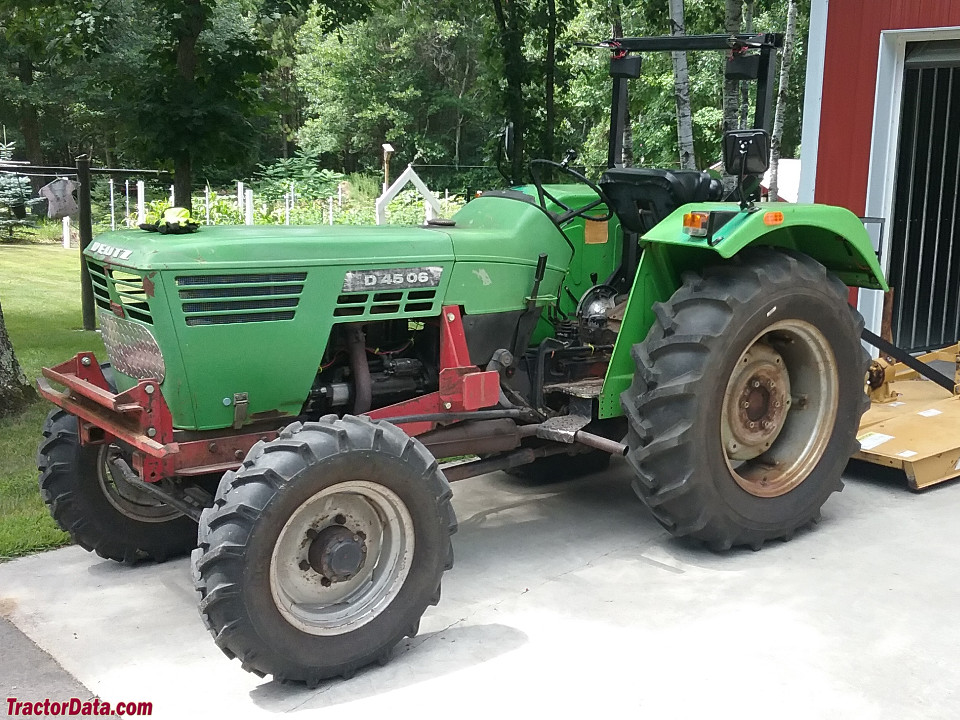

Deutz D 4506 photos...
