Deutz-Fahr DX 7.10

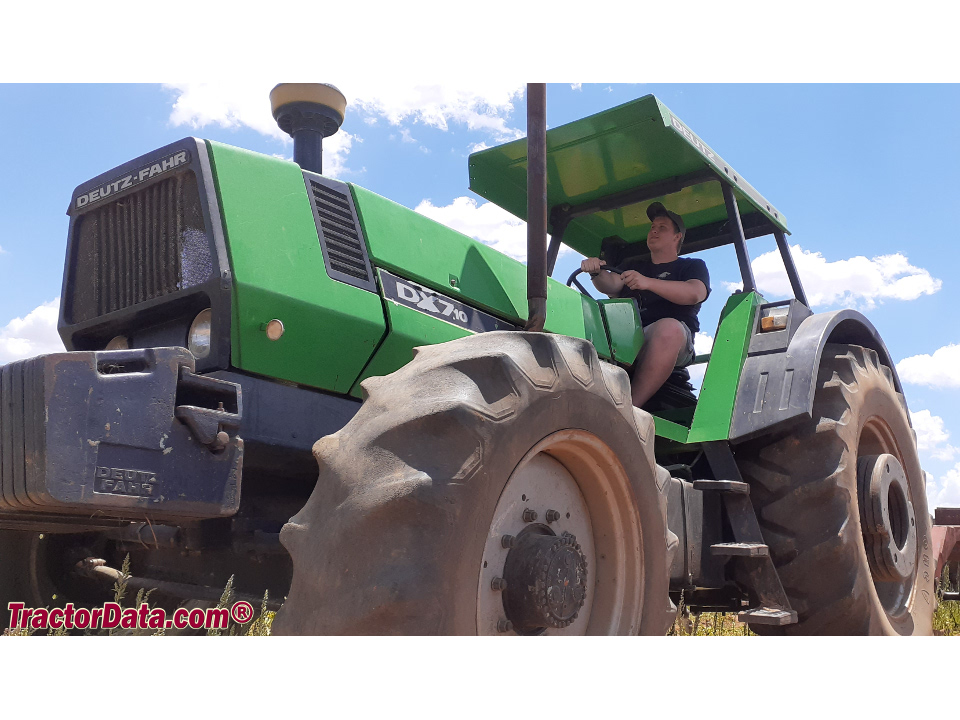

Deutz-Fahr DX 7.10 tractor photo
1984 - 1989
DX Series
Row-Crop tractor
DX 160
Series:DX 6.50DX 7.10DX 8.30
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr DX 7.10 Power
Engine:160 hp
119.3 kW
PTO (claimed):145 hp
108.1 kW
Deutz-Fahr DX 7.10 Engine
Deutz 6.1L 6-cyl diesel
Fuel tank:66 gal
249.8 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Differential lock:mechanical rear
 OPTITRAC front
Steering:power
Brakes:hydraulic dry disc
Cab:Mastercab standard with air-conditioning.
Transmissions:24-speed two-speed power shift
 32-speed
Transmission details ...
Photos
No photos of the Deutz-Fahr DX 7.10 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Type:open center
Pressure:2538 psi
175.0 bar
Valves:1 to 3
Pump flow:27.3 gpm
103.3 lpm
Tractor hitch
Rear Type:III
Rear lift (at ends):18739 lbs
8500 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000 (1.375)
Engine RPM:540@1920
1000@1920
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:103.5 inches
262 cm
4WD Wheelbase:111.3 inches
282 cm
Weight:11905 to 12897 pounds
Front tire:11.00x16
2WD Rear tire:20.8x38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Battery volts:12
