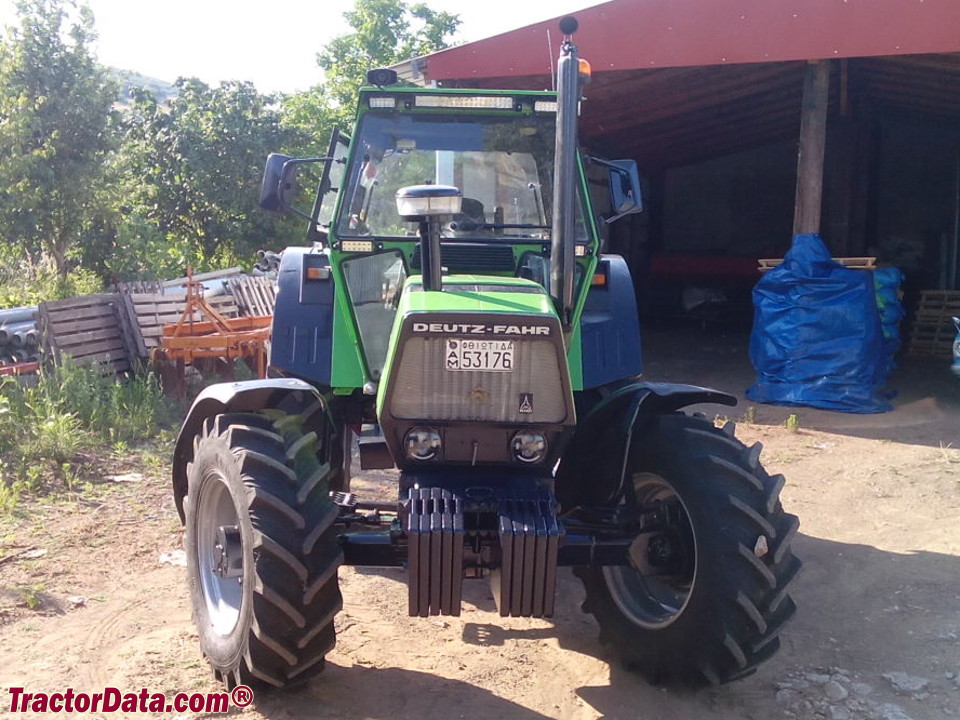

Deutz-Fahr DX 6.10


Deutz-Fahr DX 6.10 tractor photo
1983 - 1990
DX6 Series
Row-Crop tractor
Series:DX 6.05DX 6.10DX 6.30
Production
Manufacturer:Deutz-Fahr
Type:Row-Crop tractor
Deutz-Fahr DX 6.10 Power
Engine:100 hp
74.6 kW
Deutz-Fahr DX 6.10 Engine
Deutz 5.7L 6-cyl diesel
Fuel tank:31.7 gal
120.0 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Transmission:20-speed
Transmission details ...
Photos
No photos of the Deutz-Fahr DX 6.10 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pump flow:14.8 gpm
56.0 lpm
Tractor hitch
Rear lift:11466 lbs
5200 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:106.30 inches
270 cm
Weight:10385 lbs
4710 kg
Front tire:13.6R24
Rear tire:16.9R38
Full dimensions and tires ...
Electrical
Ground:negative
Battery volts:12
