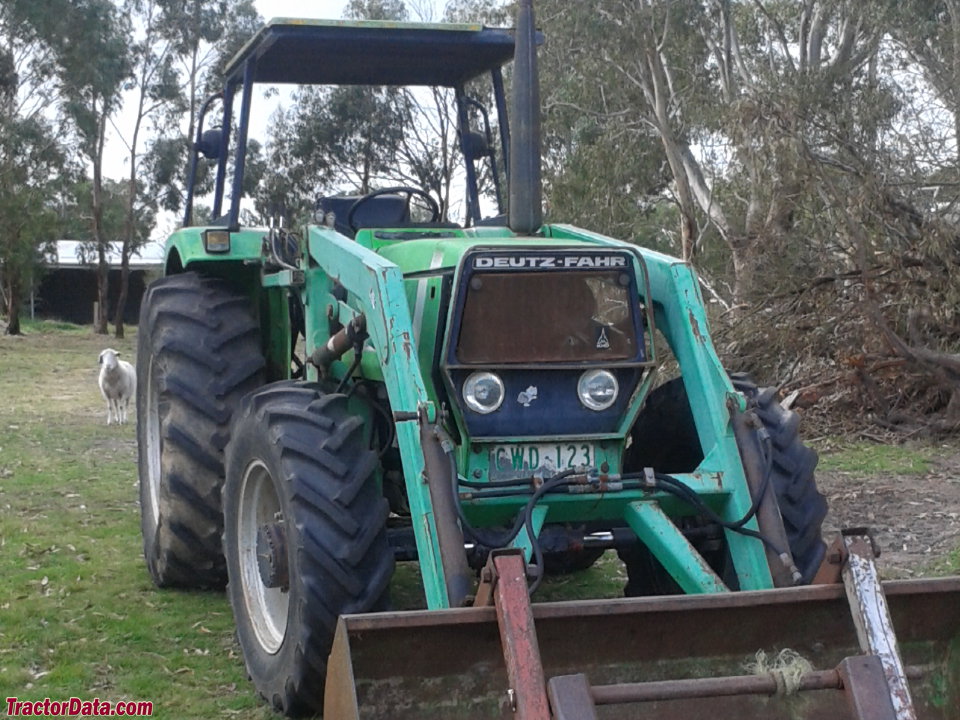

Deutz-Fahr DX 3.70
| | 1985 - 1989 |
| DX 3 Series | | Utility tractor |
|
| Production |
| Manufacturer: | Deutz-Fahr
|
| Type: | Utility tractor
|
| Factory: | Germany
|
| Deutz-Fahr DX 3.70 Power |
| Engine: | 70 hp
52.2 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | hydraulic drum
|
| Cab: | Four-post ROPS with canopy. StarCab optional.
|
| Transmissions: | 12-speed partially synchronized
|
| | 24-speed two-speed power shift
|
 Transmission details ... |
| Capacity |
| ROPS Fuel: | 23 gal
87.1 L
|
| Cab Fuel: | 22.5 gal
85.2 L
|
| Hydraulic system: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 4 gal
15.1 L
|
| | 7.5 gal
28.4 L *Optional
|
| Pressure: | 2538 psi
175.0 bar
|
| Rear valves: | 1 to 3
|
| Front valves: | 2*Optional
|
| Pump flow: | 17.7 gpm
67.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | position and draft control
|
| Rear lift: | 5733 lbs
2600 kg
|
| Front Hitch: | II*Optional
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Rear RPM: | 540 (1.375)
|
| Front PTO: | independent*Optional
|
| Clutch: | dry disc
|
| Front RPM: | 1000
|
