Deutz-Fahr DX 3.60

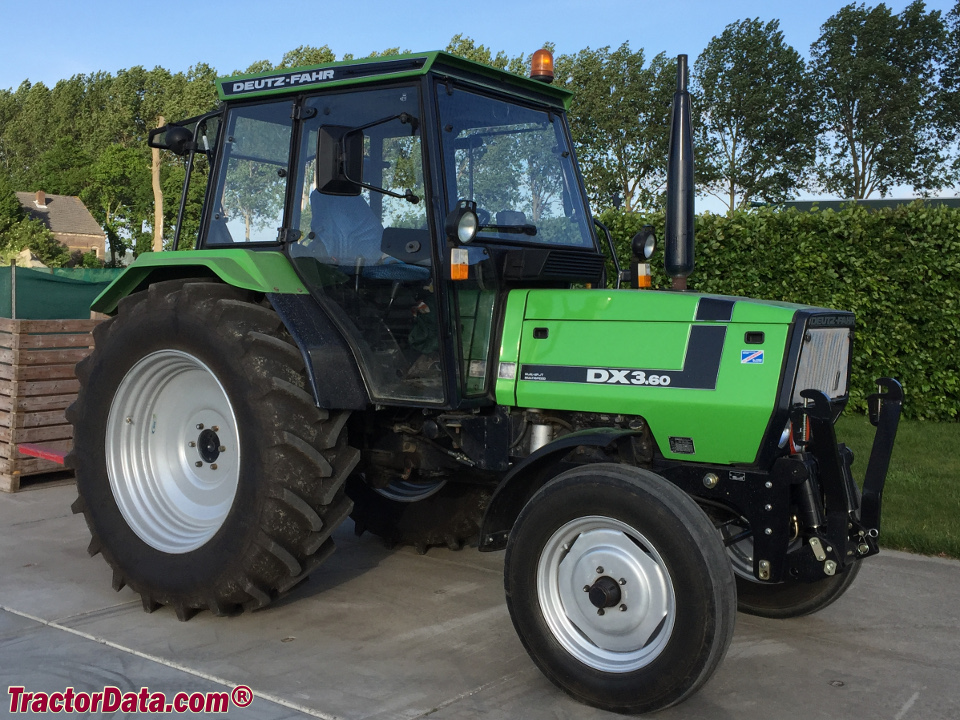

Deutz-Fahr DX 3.60 tractor photo
1986 - 1995
DX 3 Series
Series:DX 3.50DX 3.60DX 3.65
Production
Manufacturer:Deutz-Fahr
Deutz-Fahr DX 3.60 Power
Engine:65 hp
48.5 kW
Deutz-Fahr DX 3.60 Engine
Deutz 3.8L 4-cyl diesel
Fuel tank:21.9 gal
82.9 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Steering:power
Transmission:16-speed
Transmission details ...
Photos
No photos of the Deutz-Fahr DX 3.60 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Pump flow:10.6 gpm
40.1 lpm
Tractor hitch
Rear lift:5292 lbs
2400 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:88.6 inches
225 cm
Weight:6758 to 7441 pounds
Front tire:7.50-18
Rear tire:16.9R30
Full dimensions and tires ...
