Tractors > Valmet > 505

Valmet 505 - transmission

Valmet 505 tractor photo
1982 - 1991   05 Series
Row-Crop tractor
Series next:Valmet 605
more Valmet 505 specifications...






Transmission:

Type:synchromesh
Gears:8 forward and 4 reverse
Clutch:310mm dry disc
Four synchronized gears (1-4) in two ranges (low/high) plus reverse range.
Speeds:With 16.9-34 rear tires.
505  synchromesh speeds


Transmission:

Type:two-speed power shift
Gears:16 forward and 8 reverse
A push-button two-speed powershift added to the basic transmission.
Speeds:With 16.9-34 rear tires.

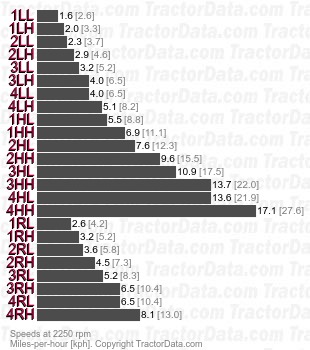

505  two-speed power shift speeds
